Unit: mm

Model Number

Wheel

Bearing

Load Capacity

Tire

Standard Air Pressure

Shaft Diameter

Overall Height

Plate Size

Mounting Hole Pitch

Plate Hole

Offset

Weight

Diameter

Width

(daN)

(kgf)

A

R

D

H1

F1/F2

P1/P2

d

E

(g)

(kgf/ cｍ2)

HLJS61/2×2-3

BLACK

B/B入

60

61.2

175

53

2.5

12

210

120/120

90/90 (80/80) *

11

45

1,880

GRAY

B/B入

1,880

PU

B/B入

-

2,000

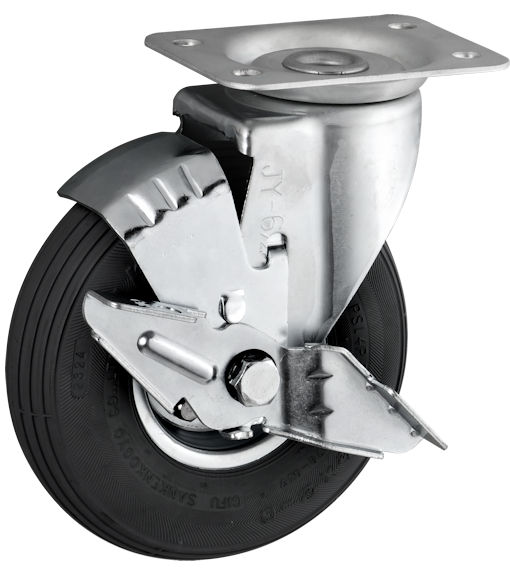

HLJYS61/2×2-3

BLACK

B/B入

60

61.2

175

53

2.5

12

210

128/98

100/56

11

45

1,830

GRAY

B/B入

1,830

PU

B/B入

-

1,970

*Changed to oval-shaped screw holes.

Bearing

B/B -- Steel bearing

Wheel

BLACK -- Tire Color: BLACK
GRAY -- Tire Color: GRAY
PU -- PU Type Airless Tire (Foaming Urethane

The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
