Super Heavy Duty Swivel Bracket
JH Type
Size 130 150 200
Drawing Bracket Dimensions Download PDF file

RGJH-150



Photo of RGJH-150

RJH-150



Photo of RJH-150

RFJH-150



Photo of RFJH-150

RRJH-150



Photo of RRJH-150


UWBJH-200

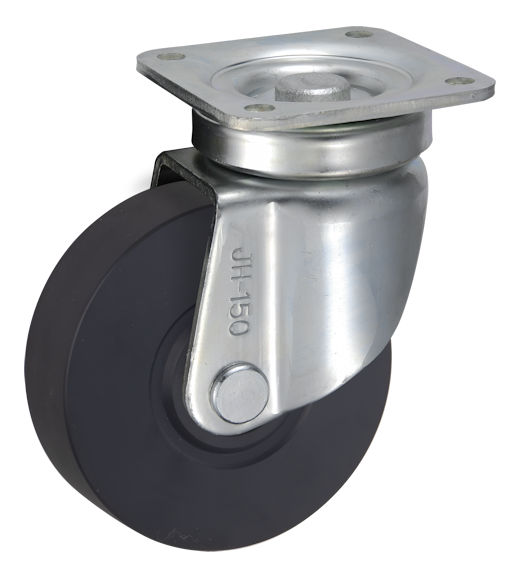

Photo of UWBJH-200

Click the image to see the enlarged image.

Unit: mm

Size Model
Number
Wheel Bearing Load Capacity Tire
Width
Shaft
Diameter
Overall
Height
Plate
Size
Mounting
Hole Pitch
Plate
Hole
Offset Weight
(daN) (kgf) R D H1 F1/F2 P1/P2 d E (g)


130 RGJH-130 Alminum Rim/Rubber B/B 240 244.8 50 20 177 108/108 80/80 11 45 3,300
RJH-130 Alminum Rim/Urethane B/B 450 459.0 3,440
RFJH-130 Steel Rim/Urethane B/B 3,470
RRJH-130 Alminum Rim/MC Nylon B/B 500 510.0 3,450
UWBJH-130 MC Nylon B/B 550 561.0 36 3,200

Bearing
B/B -- Steel bearing

Include Thrust ball and Taper roller bearing!
Distinctive Features
The swivel part includes a thrust ball bearing in the upper part and a taper roller bearing in the lower part. This design was embodied, for stabilizing the smooth swivel function and abrasion resistance under heavy loading for a long period of time.
