Super Heavy Duty Swivel Bracket
with SttopperJHB Type
Size 150
Drawing Bracket Dimensions Download PDF file

RGJHB-150

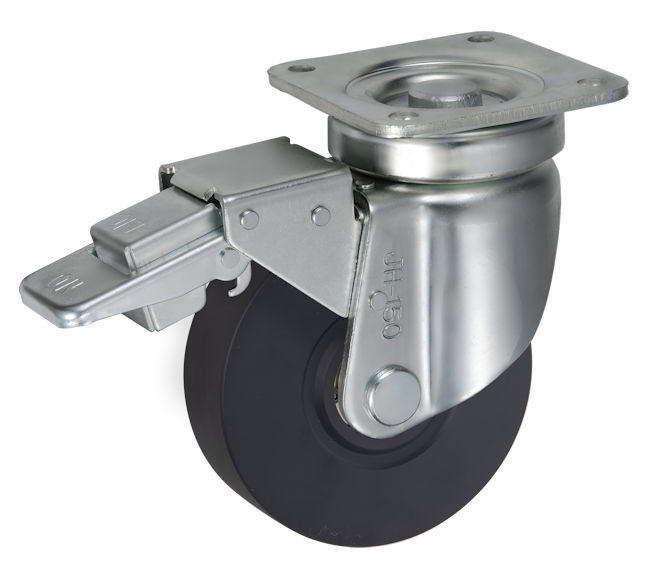

Photo of RGJHB-150

RJHB-150

Photo of RJHB-150

RFJHB-150

Photo of RFJHB-150

RRJHB-150

Photo of RRJHB-150

Click the image to see the enlarged image.

Unit: mm

Size Model
Number		 Wheel Bearing Load Capacity Tire
Width		 Shaft
Diameter		 Overall
Height		 Plate
Size		 Mounting
Hole Pitch		 Plate
Hole		 Offset Weight
(daN) (kgf) R D H1 F1/F2 P1/P2 d E (g)


150 RGJHB-150 Alminum Rim/Rubber B/B 300 306.0 50 20 198 120/120 90/90 11 50 4,610
RJHB-150 Alminum Rim/Urethane B/B 500 510.0 4,720
RFJHB-150 Steel Rim/Urethane B/B 4,780
RRJHB-150 Alminum Rim/MC Nylon B/B 550 561.0 4,720
UWBJHB-150 MC Nylon B/B 600 612.0 40 4,580

Bearing
B/B -- Steel bearing

　The stopper of the JHB Type bracket can lock the wheel to stop the caster.


Include Thrust ball and Taper roller bearing!
Distinctive Features
The swivel part includes a thrust ball bearing in the upper part and a taper roller bearing in the lower part. This design was embodied, for stabilizing the smooth swivel function and abrasion resistance under heavy loading for a long period of time.
