Heavy Duty Swivel Bracket
JM Type
Size 100 130 150 200
Bracket Dimensions Download PDF file

RGJM-150



Photo of RGJM-150

RJM-150



Photo of RJM-150

RFJM-150



Photo of RFJM-150

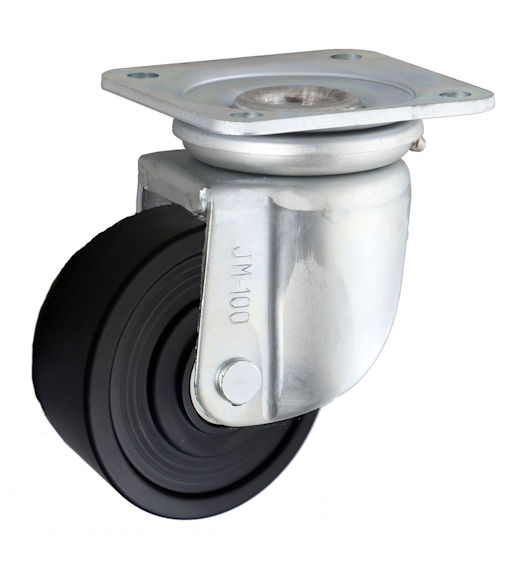

RRJM-150



Photo of RRJM-150


Click the image to see the enlarged image.

Unit: mm

Size Model
Number
Wheel Bearing Load Capacity Tire
Width
Shaft
Diameter
Overall
Height
Plate
Size
Mounting
Hole Pitch
Plate
Hole
Offset Weight
(daN) (kgf) R D H1 F1/F2 P1/P2 d E (g)


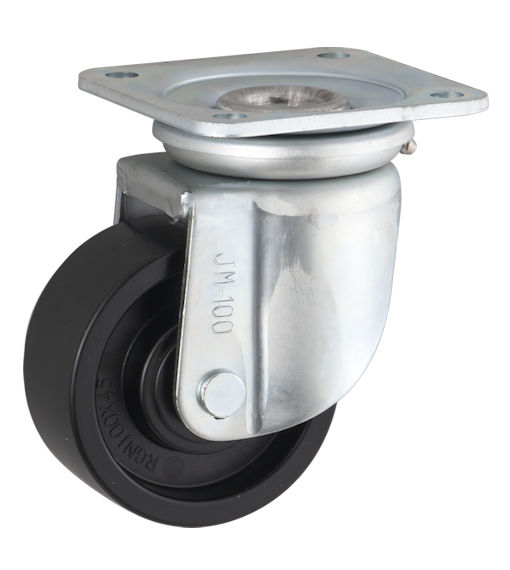

100 RGNJM-100 Reinforced Nylon B/B 460 469.2 45 12 144 108/108 80/80 11 37 1,940
RGJM-100 Alminum Rim/Rubber B/B 200 204.0 50 1,970
RJM-100 Alminum Rim/Urethane B/B 300 306.0 1,970
RFJM-100 Steel Rim/Urethane B/B 1,980
RRJM-100 MC Nylon B/B 460 469.2 45 1,880

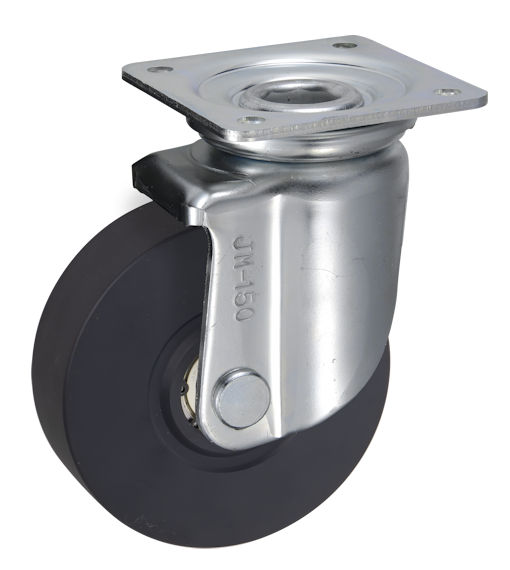

UWBJM-100 MC Nylon B/B 29 1,820

Bearing
B/B -- Steel bearing
