Heavy Duty Rigid Bracket
KH Type
KH Type

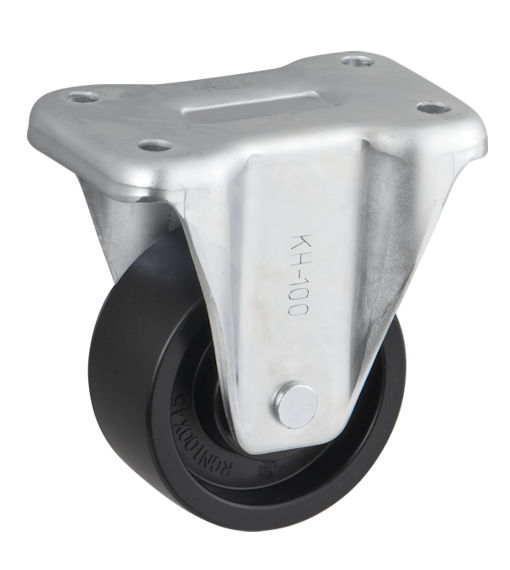

RGKH-150
RKH-150
RFKH-150

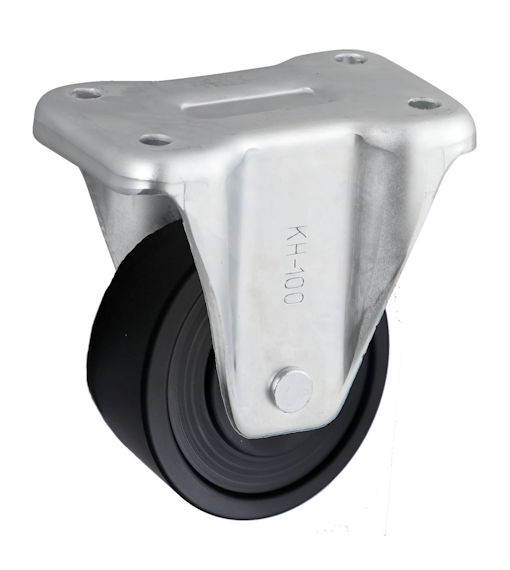

RRKH-150

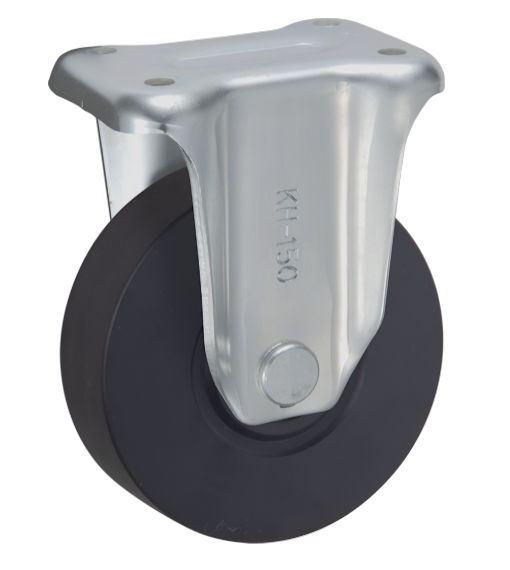

UWBKH-200
Click the image to see the enlarged image.
Unit: mm
| Size | Model Number |
Wheel | Bearing | Load Capacity | Tire Width |
Shaft Diameter |
Overall Height |
Plate Size |
Mounting Hole Pitch |
Plate Hole |
Weight | ||
| (daN) | (kgf) | R | D | H1 | F1/F2 | P1/P2 | d | (g) | |||||
 |
 |
 |
|
|
 |
 |
 |
 |
|||||
| 100 | RGNKH-100 | Reinforced Nylon | B/B | 460 | 469.2 | 45 | 12 | 144 | 139/88 | 103/52 | 11 | 1,450 | |
| RGKH-100 | Alminum Rim/Rubber | B/B | 200 | 204.0 | 50 | 1,480 | |||||||
| RKH-100 | Alminum Rim/Urethane | B/B | 300 | 306.0 | 1,480 | ||||||||
| RFKH-100 | Steel Rim/Urethane | B/B | 1,490 | ||||||||||
| RRKH-100 | MC Nylon | B/B | 460 | 469.2 | 45 | 1,390 | |||||||
| UWBKH-100 | MC Nylon | B/B | 29 | 1,330 | |||||||||
