Heavy Duty Rigid Bracket
(Small Type)KH Type
Size 50 65 75
Bracket Dimensions / Drawing Download PDF file

RGNKH-65 CP



Photo of RGNKH-65CP

RFKH-65 CP



Photo of RFKH-65

RRKH-65 CP



Photo of RRKH-65


Click the image to see the enlarged image.

Unit: mm

Size Model
Number
Wheel Bearing Load Capacity Tire
Width
Shaft
Diameter
Overall
Heigh
Plate
Size
Mounting
Hole Pitch
Plate
Hole
Weight
(daN) (kgf) R D H1 F1/F2 P1/P2 d (g)


50 RGNKH-50 CP Reinforced Nylon B/B 200 204.0 28 10 72 82/52 66/36 6.2 290
RRKH-50 CP MC Nylon B/B 27 290

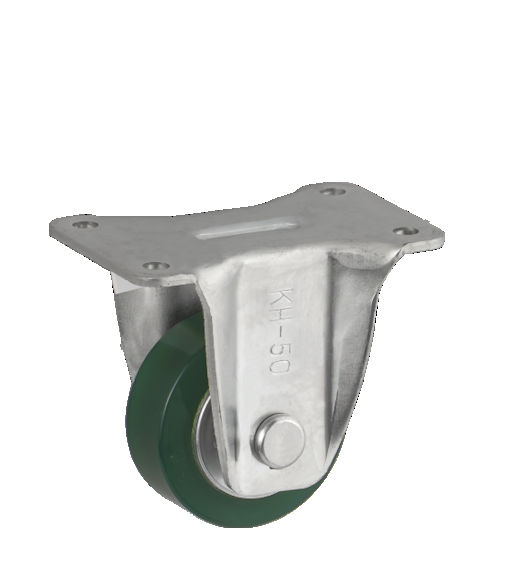

SUIKH-50 CP Urethane B/B 80 81.6 20.5 320

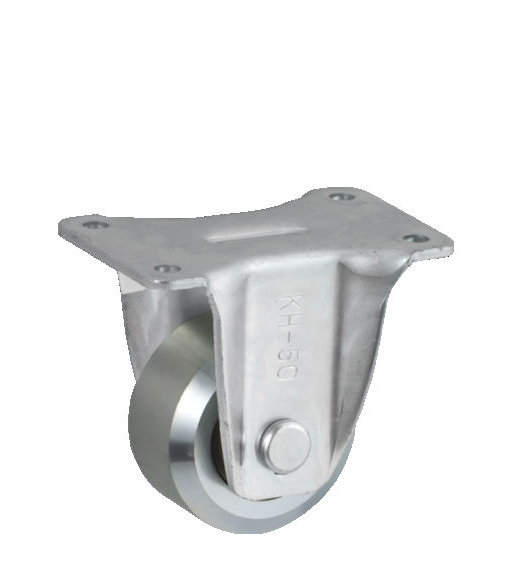

FKH-50 CP Steel B/B 100 102.0 27 500

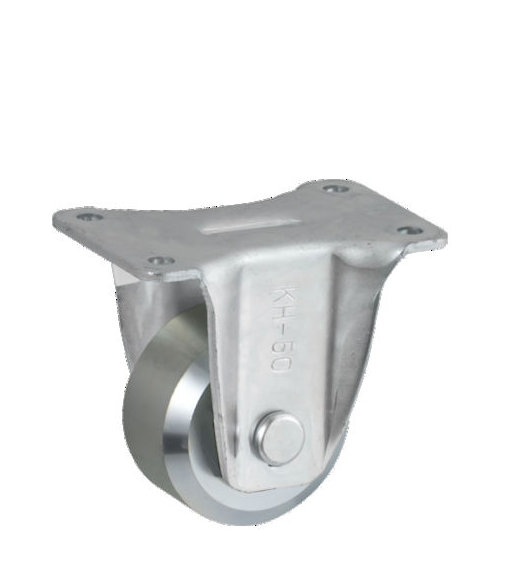

FAKH-50 CP Steel   60 61.2 570

Bearing
No Mark -- Spindle sleeve
B/B -- Steel bearing

Build-to-order manufacturing

 Bracket: White Plating (Written as "CP")
