SUIT-50
RRT-50
Click the image to see the enlarged image.
Unit: mm
| Size | Model Number |
Wheel | Bearing | Load Capacity | Tire Width |
Shaft Diameter |
Overall Height |
Plate Size |
Mounting Hole Pitch |
Plate Hole |
Offset | Weight | ||
| (daN) | (kgf) | R | D | H1 | F1/F2 | P1/P2 | d | E | (g) | |||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||
| 50 | SUIT-50 | ウレタン | B/B入 | 80 | 81.6 | 24 | 10 | 57 | 118/118 | 94/94 | 8.5 | 12 | 800 | |
| RRT-50 | MCナイロン | B/B入 | 100 | 102.0 | 27 | 780 | ||||||||

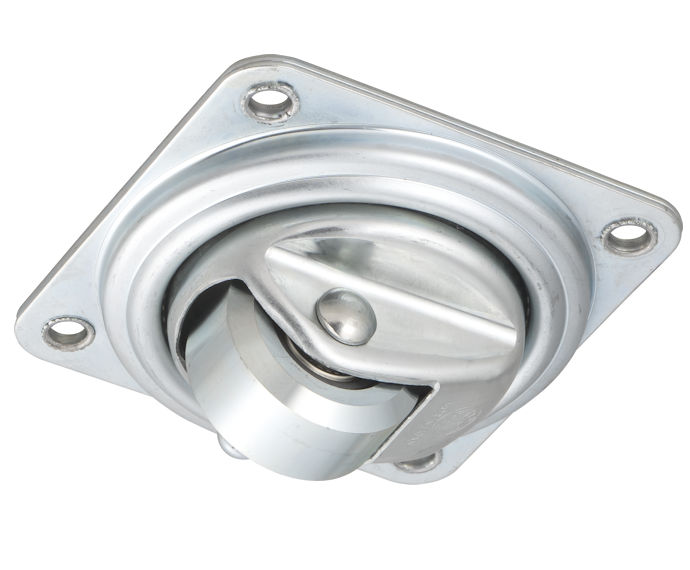

| FT-50 | 鉄製 | B/B入 | 990 | |||||||||||

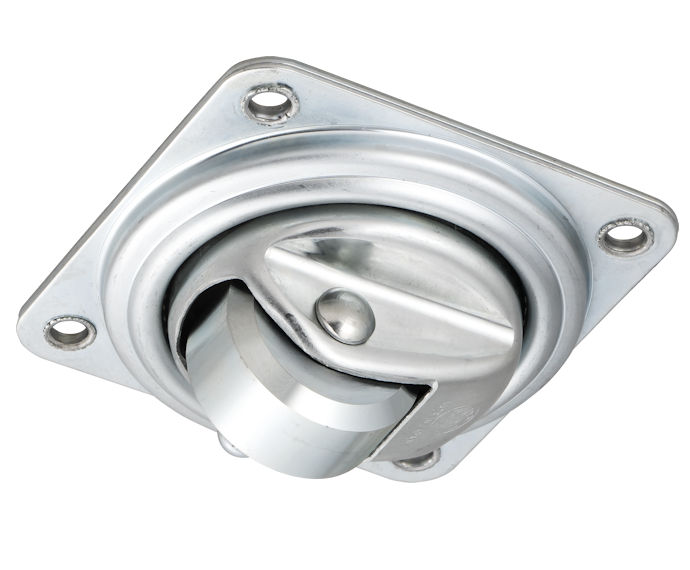

| FAT-50 | 鉄製 | 60 | 61.2 | 1,060 | ||||||||||
