Unit: mm

Size

Model Number

Wheel

Bearing

Load Capacity

Tire Width

Shaft Diameter

Overall Height

Plate Size

Mounting Hole Pitch

Plate Hole

Offset

Adjuster *

Weight

(daN)

(kgf)

R

D

H1

F1/F2

P1/P2

d

E

(g)

50

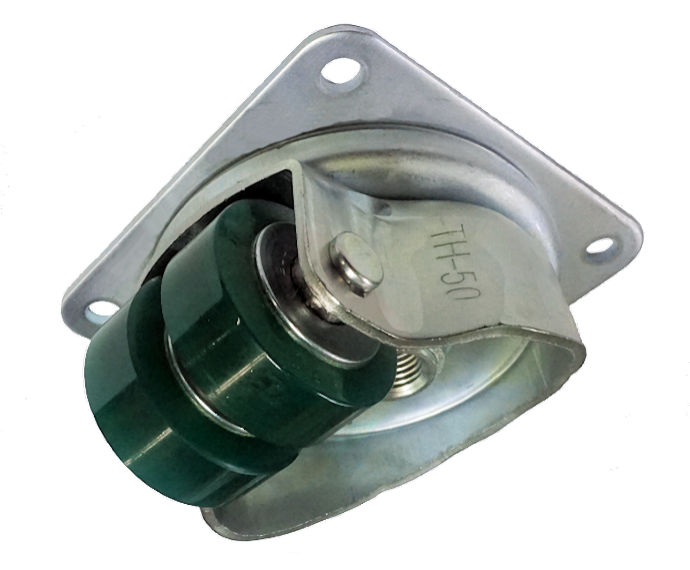

TSUITH-50

Urethane

B/B

150

153.0

20.5

10

70

118/118

94/94

8.5

40

AE-16

1,330

TRRTH-50

MC Nylon

B/B

350

357.0

27

1,270

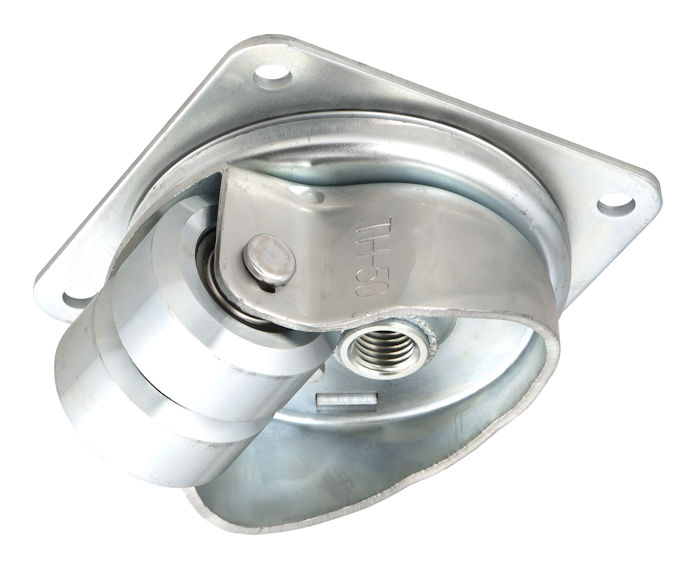

TFTH-50

Steel

B/B

1,690

*The adjuster is optional.

The wheel is used in two wheels.
