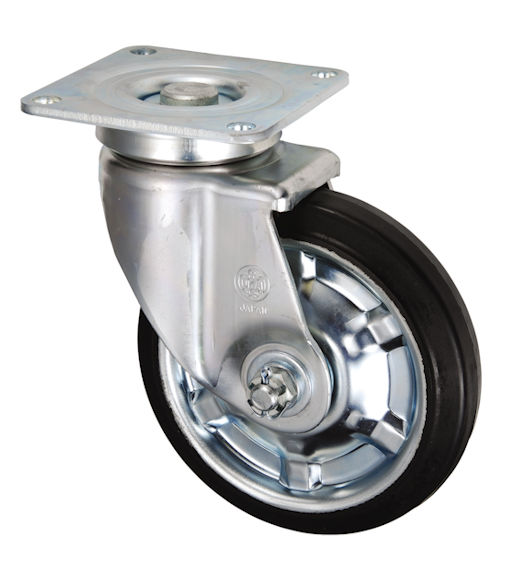

RGJHW-200
SHVJHW-200
Click the image to see the enlarged image.
Unit: mm
| Size | Model Number |
Wheel | Bearing | Load Capacity | Tire Width |
Shaft Diameter |
Overall Height |
Plate Size |
Mounting Hole Pitch |
Plate Hole |
Offset | Weight | ||
| (daN) | (kgf) | R | D | H1 | F1/F2 | P1/P2 | d | E | (g) | |||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||
| 150 | RGJHW-150 | Alminum Rim/Rubber | B/B | 300 | 306.0 | 50 | 20 | 198 | 120/120 | 90/90 | 11 | 45 | 4,070 | |

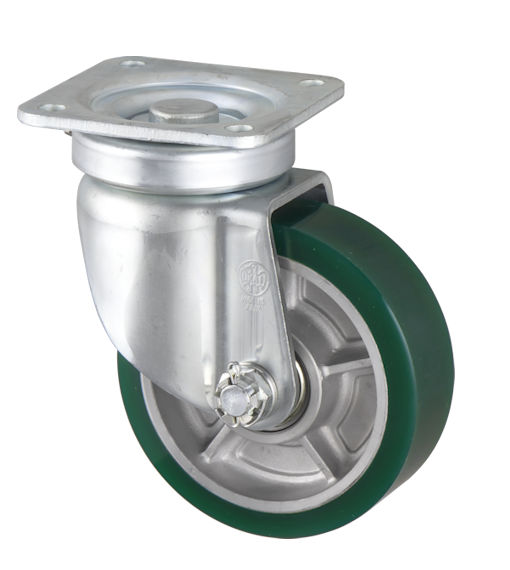

| RJHW-150 | Alminum Rim/Urethane | B/B | 500 | 510.0 | 4,180 | |||||||||
| RFJHW-150 | Steel Rim/Urethane | B/B | 4,240 | |||||||||||
The shaft includes a split pin for preventing loosening.
| The swivel part includes a thrust ball bearing in the upper part and a taper roller bearing in the lower part. This design was embodied, for stabilizing the smooth swivel function and abrasion resistance under heavy loading for a long period of time. |
