Click the image to see the enlarged image.

Unit: mm

Size

Model Number

Wheel

Bearing

Load Capacity

Tire Width

Shaft Diameter

Overall Height

Plate Size

Mounting Hole Pitch

Plate Hole

Offset

Weight

(daN)

(kgf)

R

D

H1

F1/F2

P1/P2

d

E

(g)

50

RGNJM-50 CP

Reinforced Nylon

B/B

200

204.0

28

10

72

65/65

50/50

6.2

25

420

RRJM-50 CP

MC Nylon

B/B

27

420

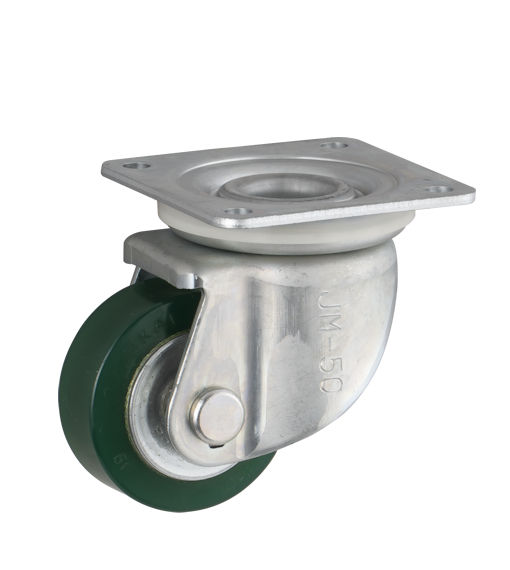

SUIJM-50 CP

Urethane

B/B

80

81.6

20.5

450

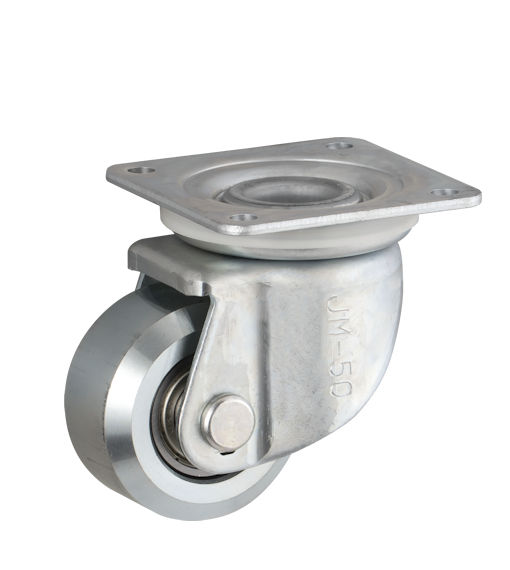

FJM-50 CP

Steel

B/B

100

102.0

27

630

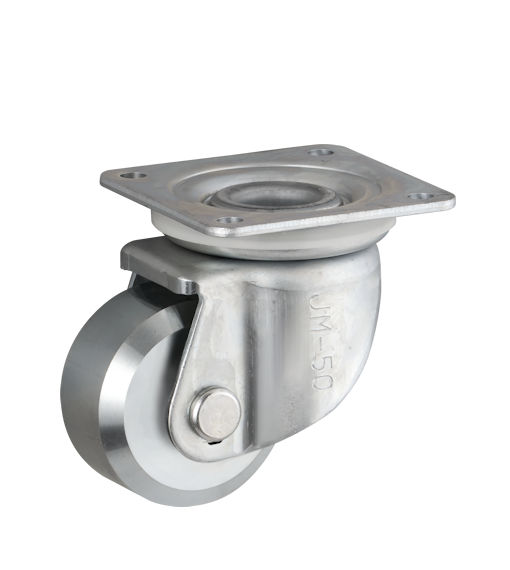

FAJM-50 CP

Steel

60

61.2

700

Bearing

No Mark -- Spindle sleeve
B/B -- Steel bearing

　

Build-to-order manufacturing

　Bracket: White Plating (Written as "CP")
