Unit: mm

Size	Model Number		Wheel	Bearing	Load Capacity		Tire Width	Shaft Diameter	Overall Height	Plate Size	Mounting Hole Pitch	Plate Hole	Weight
					(daN)	(kgf)	R	D	H1	F1/F2	P1/ P2 (P2')	d	(g)
150	+Nylon
	PKABZ-150		Nylon		180	183.6	45	20	198	137/93	*100/ 56 (50)	11	1,560
	PBKABZ-150		Nylon	B/B	300	306.0							1,800
	PBDKABZ-150		Nylon	SUS									1,800
	+Nylon Rim / Rubber Wheel
	PNKABZ-150		Rubber	B/B	175	178.5	38	20	198	137/93	*100/ 56 (50)	11	1,820
	PNDKABZ-150		Rubber	SUS									1,820
	PNAKABZ-150		Rubber		140	142.8							1,660
	+Nylon Rim / Urethane Rubber Wheel
	PNUKABZ-150		Urethane	B/B	250	255.0	38	20	198	137/93	*100/ 56 (50)	11	1,780
	PNUDKABZ-150		Urethane	SUS									1,780

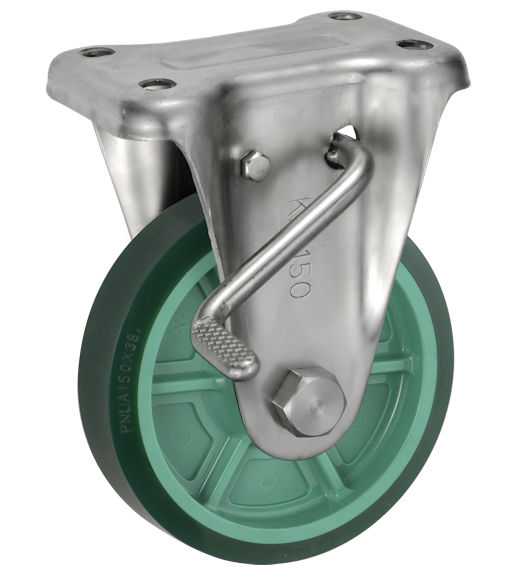

	PNUAKABZ-150		Urethane		150	153.0							1,590
	+Monomer Cast Nylon
	UWBKABZ-150		MC Nylon	B/B	350	357.0	40	20	198	137/93	*100/ 56 (50)	11	2,240
	UWBDKABZ-150		MC Nylon	SUS									2,240

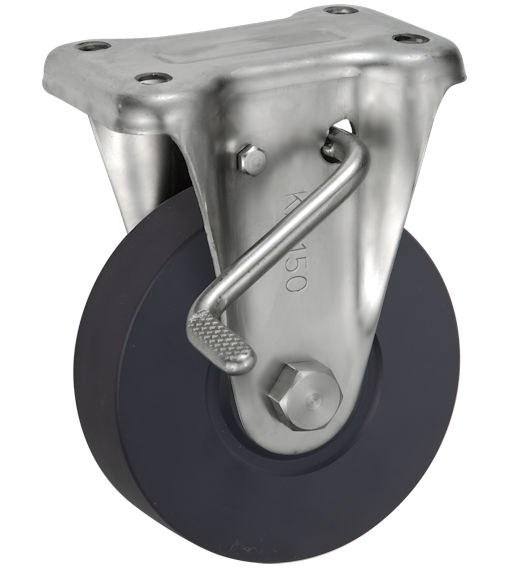

	UWAKABZ-150		MC Nylon										2,090
	UWBSKABZ-150		MC Nylon	B/B			30						1,840
	UWBSDKABZ-150		MC Nylon	SUS									1,840
	+Steel Rim / Rubber Wheel				Wheel rim is not stainless steel.
	SKABZ-150		Rubber	B/B	200	204.0	45	20	198	137/93	*100/ 56 (50)	11	2,110
	SRKABZ-150		Red Rubber	B/B	160	163.2							2,110
	CRKABZ-150		Heat-resistance	B/B	200	204.0							2,150
	+Steel Rim / Urethane Rubber Wheel				Wheel rim is not stainless steel.
	SUIKABZ-150		Urethane	B/B	300	306.0	38	20	198	137/93	*100/ 56 (50)	11	2,300
	SUIEKABZ-150		Anti-Static	B/B									2,300

*The stopper pedal for left foot is available (KABZ-150 -> KABZL-150).
*The materials of KABZ Type bracket are all stainless steel (SUS304 / 18-8 stainless). The plate springs are also made of stainless steel and has excellent corrosion resistance.
