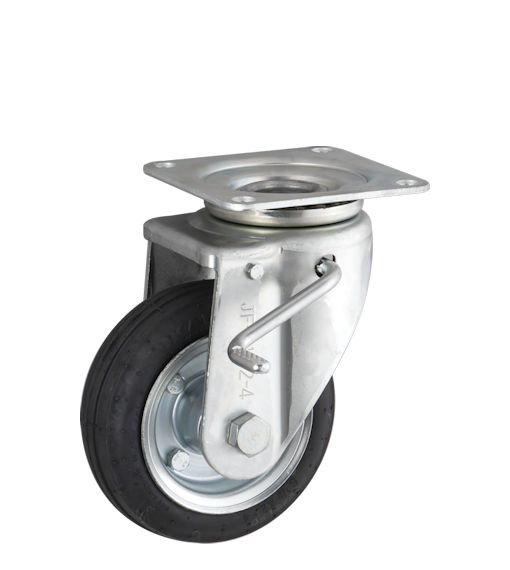

Click the image to see the enlarged image.

Unit: mm

Model Number

Wheel

Bearing

Load Capacity

Tire

Standard Air Pressure

Shaft Diameter

Overall Height

Plate Size

Mounting Hole Pitch

Plate Hole

Offset

Weight

Diameter

Width

(daN)

(kgf)

A

R

D

H1

F1/F2

P1/P2

d

E

(g)

(kgf/ cｍ2)

HFJBF61/2x2-4

BLACK

B/B入

80

81.6

169

50

2.5

20

234

140/140

112/112

14

58

4,340

GRAY

B/B入

4,340

Bearing

B/B -- Steel bearing

Wheel

BLACK -- Tire Color: BLACK
GRAY -- Tire Color: GRAY

The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
