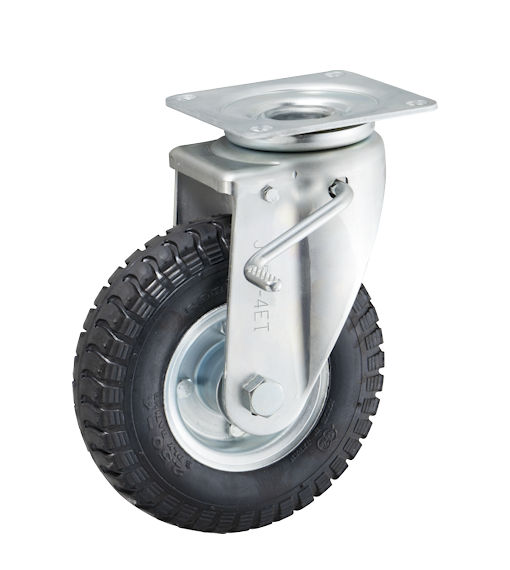

Click the image to see the enlarged image.

Unit: mm

Model Number	Wheel		Bearing	Load Capacity		Tire		Standard Air Pressure	Shaft Diameter	Overall Height	Plate Size	Mounting Hole Pitch	Plate Hole	Offset	Weight
						Diameter	Width
				(daN)	(kgf)	A	R		D	H1	F1/F2	P1/P2	d	E	(g)
								(ｋｇf/ cｍ2)
HLETJB2.50-4	BS		B/B入	85	86.7	225	65	3.5	20	292	140/140	112/112	14	58	4,780
	FO	BLACK	B/B入			218	62			289					4,690
		GRAY	B/B入												4,690
	PU	BLACK	B/B入	85	86.7	211	61	-		285					4,980
		GRAY	B/B入												4,980
	AL		B/B入	100	102.0	220	60	-		290					5,910

Bearing

B/B -- Steel bearing

Wheel

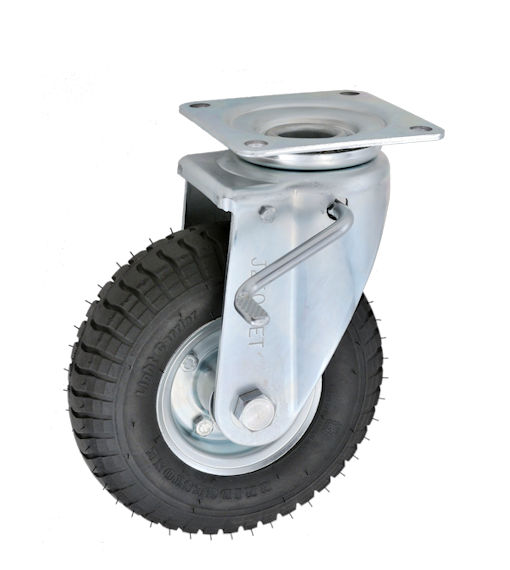

BS: Tire Made by Bridgestone
FO: Tire Made by Overseas Maker

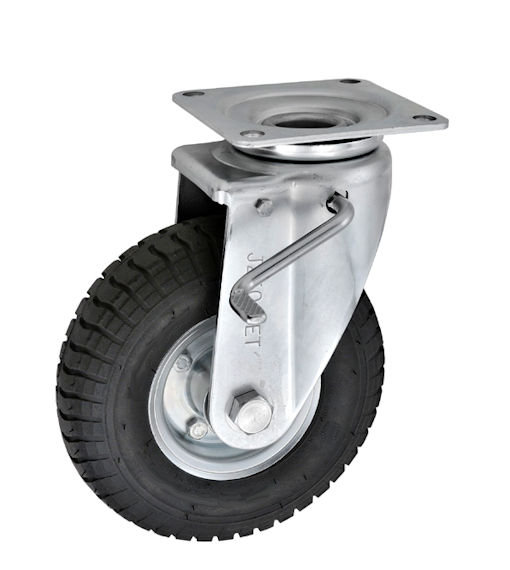

PU -- PU Type Airless Tire (Foaming Urethane)
BLACK -- Tire Color : BLACK
GRAY -- Tire Color : GRAY
AL -- Airless / Solid Tire

The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
