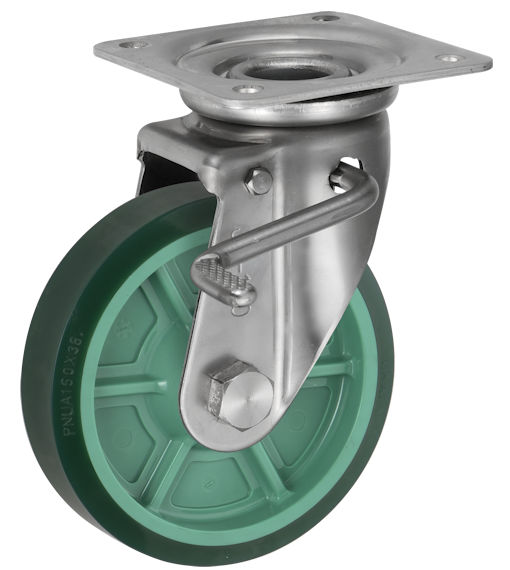

Stainless Steel Swivel Bracket with Stopper JAB-150

PJAB-150

PNAJAB-150

PNUAJAB-150

UWAJAB-150

Click the image to see the enlarged image.

Unit: mm

Size	Model Number	Wheel	Bearing	Load Capacity		Tire Width	Shaft Diameter	Overall Height	Plate Size	Mounting Hole Pitch	Plate Hole	Offset	Weight
				(daN)	(kgf)	R	D	H1	F1/F2	P1/P2	d	E	(g)

150	+Nylon
	PJAB-150	Nylon		180	183.6	45	20	198	120/120	90/90	11	45	2,080
	PBJAB-150	Nylon	B/B	300	306.0								2,320
	PBDJAB-150	Nylon	SUS										2,320
	+Nylon Rim / Rubber Wheel
	PNJAB-150	Rubber	B/B	175	178.5	38	20	198	120/120	90/90	11	45	2,340
	PNDJAB-150	Rubber	SUS										2,340
	PNAJAB-150	Rubber		140	142.8								2,180
	+Nylon Rim / Urethane Rubber Wheel
	PNUJAB-150	Urethane	B/B	250	255.0	38	20	198	120/120	90/90	11	45	2,300
	PNUDJAB-150	Urethane	SUS										2,300
	PNUAJAB-150	Urethane		150	153.0								2,110
	+Monomer Cast Nylon
	UWBJAB-150	MC Nylon	B/B	350	357.0	40	20	198	120/120	90/90	11	45	2,760
	UWBDJAB-150	MC Nylon	SUS										2,760
	UWAJAB-150	MC Nylon											2,610
	UWBSJAB-150	MC Nylon	B/B			30							2,360
	UWBSDJAB-150	MC Nylon	SUS										2,360
	+Steel Rim / Rubber Wheel			Wheel rim is not stainless steel.
	SJAB-150	Rubber	B/B	200	204.0	45	20	198	120/120	90/90	11	45	2,630
	SRJAB-150	Red Rubber	B/B	160	163.2								2,630
	CRJAB-150	Heat-resistance	B/B	200	204.0								2,670
	+Steel Rim / Urethane Rubber Wheel			Wheel rim is not stainless steel.
	SUIJAB-150	Urethane	B/B	300	306.0	38	20	198	120/120	90/90	11	45	2,820
	SUIEJAB-150	Anti-Static	B/B										2,820

*The Stopper Pedal for left foot is not available.

*The materials of JAB Type bracket are all stainless steel (SUS304 / 18-8 stainless). The plate springs are also made of stainless steel for the spring and has excellent corrosion resistance.

Bearing

No mark -- Spindle sleeve
B/B -- Steel bearing
SUS -- Stainless steel bearing

Build-to-order manufacturing

　The JAB Type bracket can lock or unlock the wheel and frame at the same time just by stepping the pedal.　

The materials of JAB Type bracket are all stainless steel, but the following wheels are not stainless steel. In addition, stainless steel bearings cannnot set.
Please be careful when selecting a caster.

Steel Rim / Rubber Wheel (S, SR, SH, CR)
Steel Rim / Urethane Rubber Wheel (SUI, SUIE)
