Unit: mm

Size

Model Number

Wheel

Bearing

Load Capacity

Tire Width

Shaft Diameter

Overall Height

Plate Size

Mounting Hole Pitch

Plate Hole

Offset

Weight

(daN)

(kgf)

R

D

H1

F1/F2

P1/P2

d

E

(g)

200

RGJMB-200

Steel Rim/Rubber

B/B

410

418.2

63

25

250

140/140

112/112

14

58

7,250

RFJMB-200

Steel Rim/Urethane

B/B

600

612.0

7,260

RRJMB-200

Alminum Rim/MC Nylon

B/B

660

673.2

7,100

UWBJMB-200

MC Nylon

B/B

42

6,630

Bearing

B/B -- Steel bearing

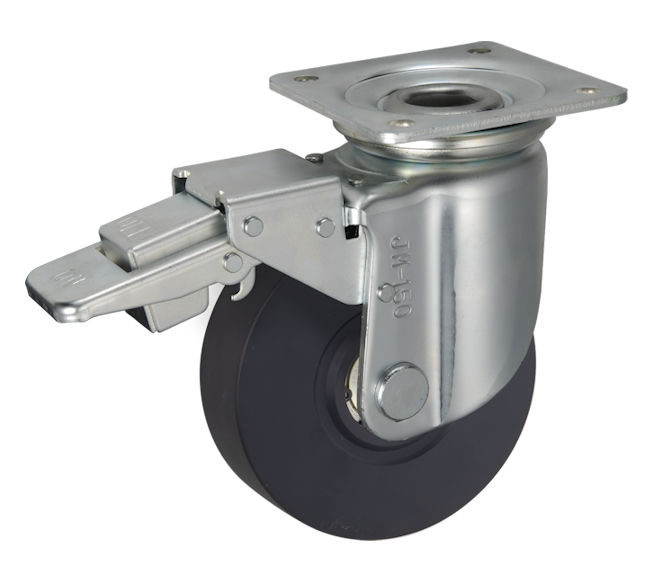

　The stopper of the JMB Type bracket can lock the wheel to stop the caster.
