Unit: mm

Size

Model Number

Wheel

Bearing

Load Capacity

Tire Width

Shaft Diameter

Overall Height

Plate Size

Mounting Hole Pitch

Plate Hole

Offset

Weight

(daN)

(kgf)

R

D

H1

F1/F2

P1/P2

d

E

(g)

100

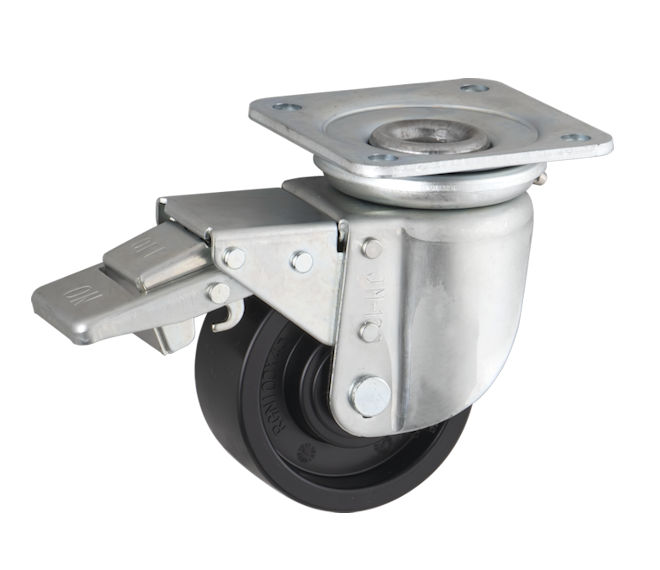

RGNJMB-100

Reinforced Nylon

B/B

460

469.2

45

12

144

108/108

80/80

11

37

2,250

RGJMB-100

Alminum Rim/Rubber

B/B

200

204.0

50

2,280

RJMB-100

Alminum Rim/Urethane

B/B

300

306.0

2,280

RFJMB-100

Steel Rim/Urethane

B/B

2,290

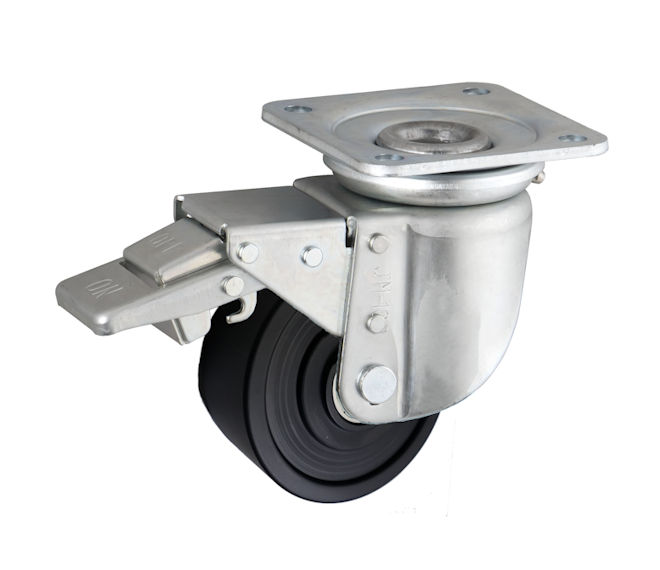

RRJMB-100

MC Nylon

B/B

460

469.2

45

2,190

UWBJMB-100

MC Nylon

B/B

29

2,130

Bearing

B/B -- Steel bearing

　The stopper of the JMB Type bracket can lock the wheel to stop the caster.
