Unit: mm

Size	Model Number		Wheel	Bearing	Load Capacity		Tire Width	Shaft Diameter	Overall Height	Plate Size	Mounting Hole Pitch	Plate Hole	Weight
					(daN)	(kgf)	R	D	H1	F1/F2	P1/ P2 (P2')	d	(g)
150	+Steel Rim / Rubber Wheel
	SKBZ-150		Rubber	B/B	200	204.0	45	20	198	137/93	*100/ 56 (50)	11	2,140
	SRKBZ-150		Red Rubber	B/B	160	163.2							2,140
	CRKBZ-150		Heat-resistance	B/B	200	204.0							2,180
	+Steel Rim / Urethane Rubber Wheel
	SUIKBZ-150		Urethane	B/B	300	306.0	38	20	198	137/93	*100/ 56 (50)	11	2,330
	SUIEKBZ-150		Anti-Static	B/B									2,330
	+Nylon Rim / Rubber Wheel

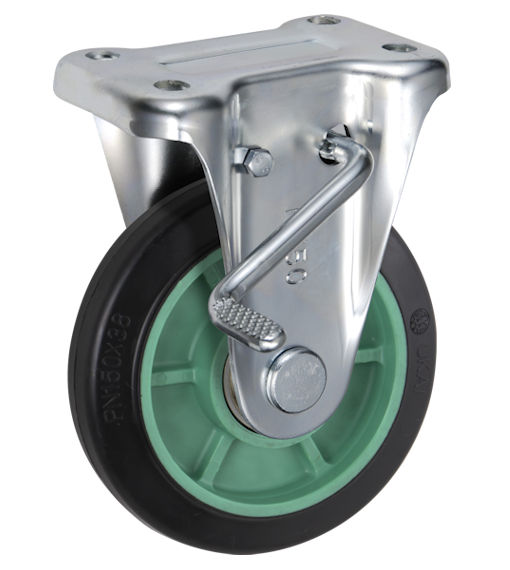

	PNKBZ-150		Rubber	B/B	175	178.5	38	20	198	137/93	*100/ 56 (50)	11	1,850
	PNDKBZ-150		Rubber	SUS									1,850
	PNAKBZ-150		Rubber		140	142.8							1,690
	+Nylon Rim / Urethane Rubber Wheel

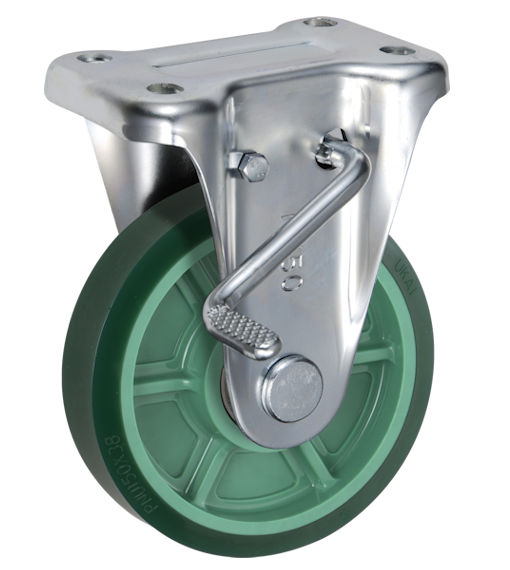

	PNUKBZ-150		Urethane	B/B	250	255.0	38	20	198	137/93	*100/ 56 (50)	11	1,810
	PNUDKBZ-150		Urethane	SUS									1,810
	PNUAKBZ-150		Urethane		150	153.0							1,620
	+Nylon
	PKBZ-150		Nylon		180	183.6	45	20	198	137/93	*100/ 56 (50)	11	1,590
	PBKBZ-150		Nylon	B/B	300	306.0							1,830
	PBDKBZ-150		Nylon	SUS									1,830
	+Monomer Cast Nylon
	UWBKBZ-150		MC Nylon	B/B	300	306.0	40	20	198	137/93	*100/ 56 (50)	11	2,270
	UWBDKBZ-150		MC Nylon	SUS									2,270
	UWAKBZ-150		MC Nylon										2,120
	UWBSKBZ-150		MC Nylon	B/B			30						1,870
	UWBSDKBZ-150		MC Nylon	SUS									1,870

*Oval-shaped screw holes

*The stopper pedal for left foot is available (KBZ-150 -> KBZL-150).

Bearing

No mark -- Spindle sleeve
B/B -- Steel bearing
SUS -- Stainless steel bearing

　

Build-to-order manufacturing

　The stopper of the KBZ Type bracket can lock the wheel to stop the caster.
