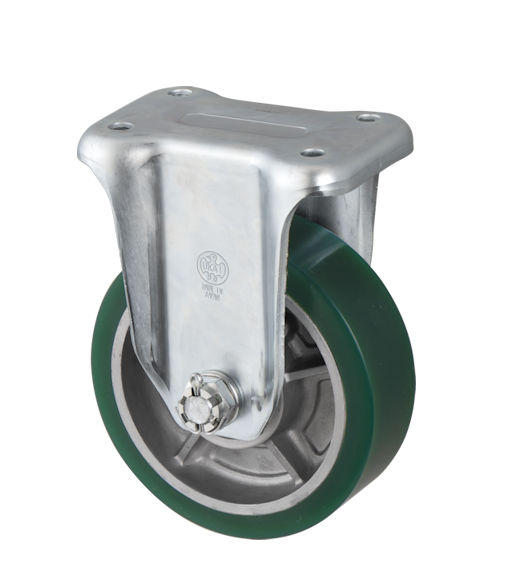

RKHW-150

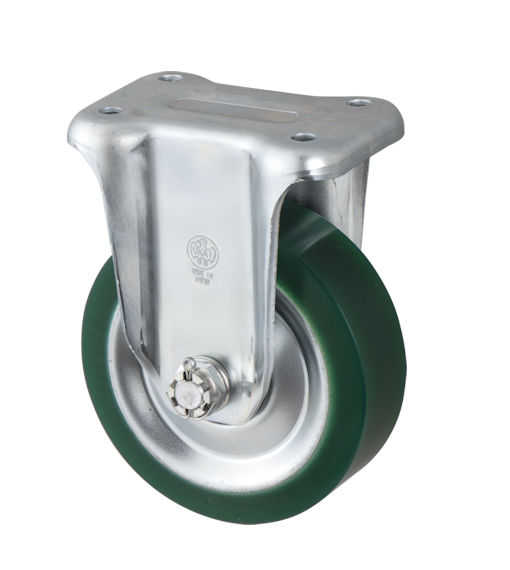

RFKHW-150
RGKHW-200

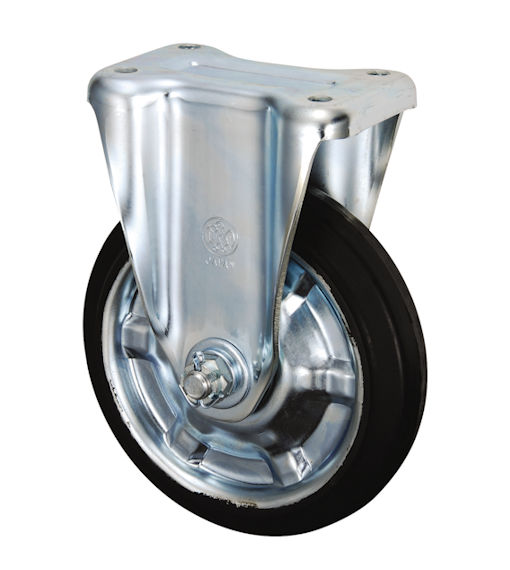

SVKW-200
SHVKW-200
Click the image to see the enlarged image.
Unit: mm
| Size | Model Number |
Wheel | Bearing | Load Capacity | Tire Width |
Shaft Diameter |
Overall Height |
Plate Size |
Mounting Hole Pitch |
Plate Hole |
Weight | ||
| (daN) | (kgf) | R | D | H1 | F1/F2 | P1/P2 | d | (g) | |||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||
| 150 | RGKHW-150 | Alminum Rim/Rubber | B/B | 300 | 306.0 | 50 | 20 | 198 | 140/96 | 100/56 | 11 | 2,650 | |
| RKHW-150 | Alminum Rim/Urethane | 500 | 510.0 | 2,760 | |||||||||
| RFKHW-150 | Steel Rim/Urethane | 2,820 | |||||||||||
The shaft includes a split pin for preventing loosening.
