Pneumatic Rubber Wheel
Download PDF file
Size 61/2x2-3 2.00-4 61/2x2-4
2.50-4 3.00-4 8x3.00-4 3.50-5

61/2x4HL 61/2x2-4HF

-- 61/2x2-4HL --
Pneumatic Rubber Wheel (Boss Width: 52)

61/2x2-4HL
BLACK

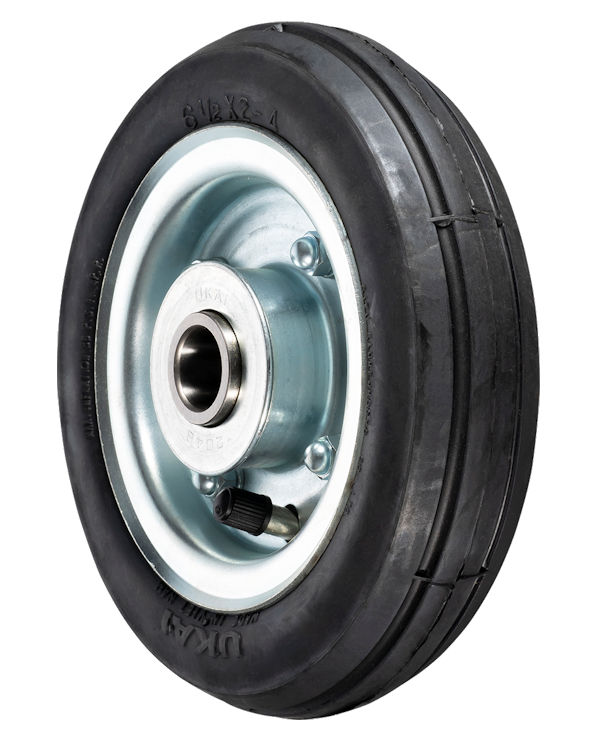

Photo of 61/2x2-4HL

61/2x2-4HL drwaing


Click the image to see the enlarged image.

Unit: mm

Model
Number		 Wheel Load Capacity Tire Rim Boss
Width		 Shaft
Diameter		 Standard
Air
Pressure		 Steel
Ball
Bearing		 Valve Weight
Diameter Width Diameter Bead
Diameter		 Outside
Width		 Inside
Width
(daN) (kgf) A R E C G F B D (g)
(kg/cm2)
61/2x2-4HL BLACK 80 81.6 175 40 120 99 38 30 52 20 2.5 204B DIN7777 1,060
GRAY 1,060
Wheel
BLACK -- Tire Color: BLACK
GRAY -- Tire Color: GRAY
Tire
4PR

The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.

Topへ

-- 61/2x２-4HF --
Pneumatic Rubber Wheel (Boss Width: 82)

61/2x2-4HF
BLACK

Photo of 61/2x2-4HF

61/2x2-4 drawing


Click the image to see the enlarged image.

Unit: mm

Model
Number		 Wheel Load Capacity Tire Rim Boss
width		 Shaft
Diameter		 Standard
Air
Pressure		 Steel
Ball
Bearing		 Valve Weight
Diameter Width Diameter Bead
Diameter		 Outside
Width		 Inside
Width
(daN) (kgf) A R E C G F B D (g)
(kg/cm2)
61/2x2-4HF BLACK 80 81.6 169 50 115 97.5 56 46 82 20 2.5 204B DIN7777 1,270
GRAY 1,270
Wheel
BLACK -- Tire Color: BLACK
GRAY -- Tire Color: GRAY
Tire
4PR

The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
