Pneumatic Rubber Wheel / Airless Wheel
Download PDF file
Size 61/2x2-3 2.00-4 61/2x2-4
2.50-4 3.00-4 8×3.00-4 3.50-5

3.50-5HL 3.50-5HL AL

-- 3.50-5HL --
Pneumatic Rubber Wheel

3.50-5HL

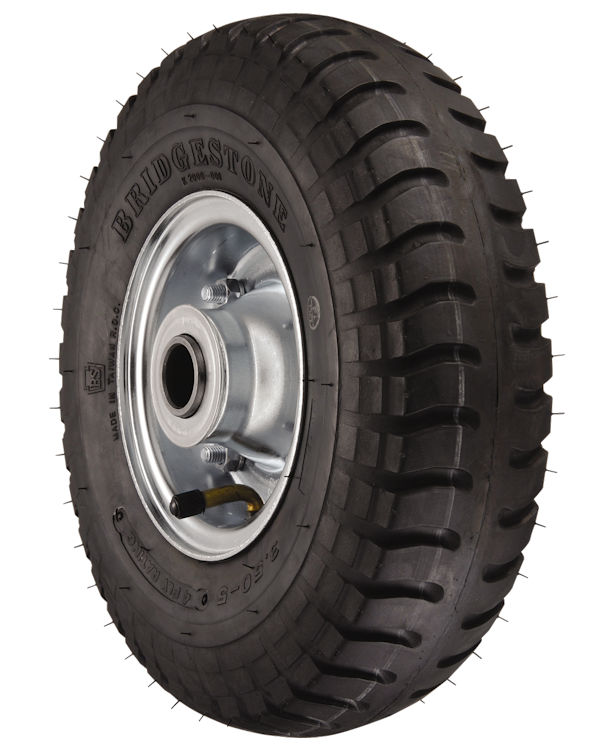

Photo of 3.50-5HL

3.50-5HL Rim

Photo of 3.50-5HL RIM

3.50-5HL drwaing


Click the image to see the enlarged image.

Unit: mm

Model
Number		 Wheel Load Capacity Tire Rim Boss
Width		 Shaft
Diameter		 Standard
Air
Pressure		 Steel
Ball
Bearing		 Valve Weight
Diameter Width Diameter Bead
Diameter		 Outside
Width		 Inside
Width
(daN) (kgf) A R E C G F B D (g)
(kg/cm2)
3.50-5HL BS 160 163.2 295 90 149 127 75 62 98 25 3.5 205B JS87 2,610
FO 286 90 TR87 2,610
Wheel
BS: Tire Made by Bridgestone
FO: Tire Made by Overseas maker
Tire
4PR

The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
