Medium Weight Swivel Bracket
J Type
J Type
SJ-150
SUIJ-150
SUIEJ-150
Click the image to see the enlarged image.
Unit: mm
| Size | Model Number |
Wheel | Bearing | Load Capacity | Tire Width |
Shaft Diameter |
Overall Height |
Plate Size |
Mounting Hole Pitch |
Plate Hole |
Offset | Weight | ||
| (daN) | (kgf) | R | D | H1 | F1/F2 | P1/P2 | d | E | (g) | |||||
 |
 |
 |
|
|
 |
 |
 |
 |
 |
|||||
| 150 | +Steel Rim / Rubber Wheel | |||||||||||||
| SJ-150 | Rubber | B/B | 200 | 204.0 | 45 | 20 | 198 | 120/120 | * 95/95 (87/87) |
11 | 45 | 2,510 | ||
| SRJ-150 | Red Rubber | B/B | 140 | 142.8 | 2,510 | |||||||||
| CRJ-150 | Heat-resistance | B/B | 180 | 183.6 | 2,550 | |||||||||
| +Steel Rim / Urethane Rubber Wheel | ||||||||||||||
| SUIJ-150 | Urethane | B/B | 300 | 306.0 | 38 | 20 | 198 | 120/120 | * 95/95 (87/87) |
11 | 45 | 2,700 | ||
| SUIEJ-150 | Anti-Static | B/B | 2,700 | |||||||||||
| +Nylon Rim / Rubber Wheel | ||||||||||||||

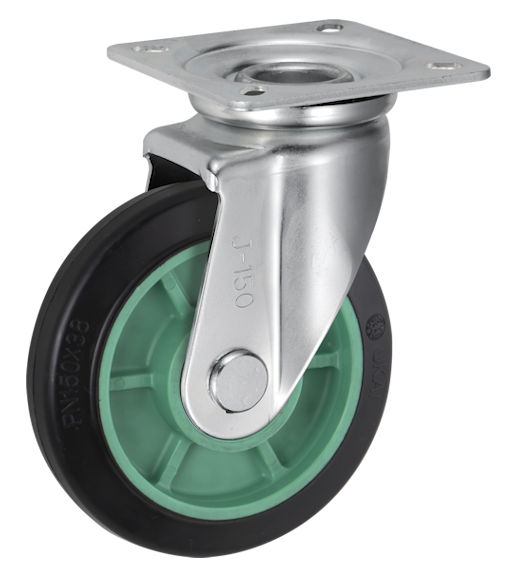

| PNJ-150 | Rubber | B/B | 175 | 178.5 | 38 | 20 | 198 | 120/120 | * 95/95 (87/87) |
11 | 45 | 2,220 | ||
| PNDJ-150 | Rubber | SUS | 2,220 | |||||||||||
| PNAJ-150 | Rubber | 140 | 142.8 | 2,060 | ||||||||||
| +Nylon Rim / Urethane Rubber Wheel | ||||||||||||||

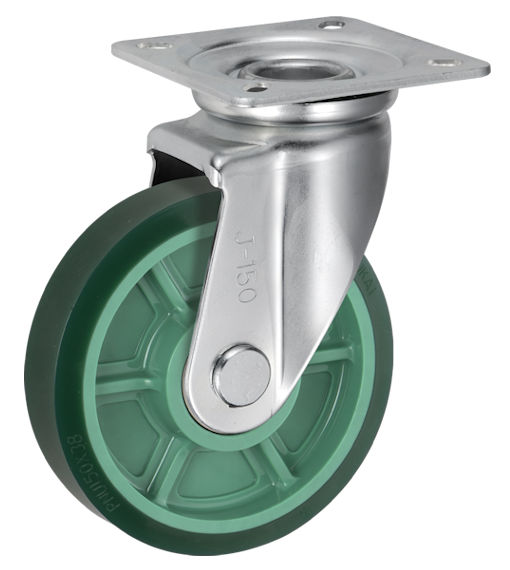

| PNUJ-150 | Urethane | B/B | 250 | 255.0 | 38 | 20 | 198 | 120/120 | * 95/95 (87/87) |
11 | 45 | 2,180 | ||
| PNUDJ-150 | Urethane | SUS | 2,180 | |||||||||||
| PNUAJ-150 | Urethane | 150 | 153.0 | 1,990 | ||||||||||
| +Nylon | ||||||||||||||
| PJ-150 | Nylon | 180 | 183.6 | 45 | 20 | 198 | 120/120 | * 95/95 (87/87) |
11 | 45 | 1,960 | |||
| PBJ-150 | Nylon | B/B | 300 | 306.0 | 2,200 | |||||||||
| PBDJ-150 | Nylon | SUS | 2,200 | |||||||||||
| +Monomer Cast Nylon | ||||||||||||||
| UWBJ-150 | MC Nylon | B/B | 300 | 306.0 | 40 | 20 | 198 | 120/120 | * 95/95 (87/87) |
11 | 45 | 2,640 | ||
| UWBDJ-150 | MC Nylon | SUS | 2,640 | |||||||||||
| UWAJ-150 | MC Nylon | 2,490 | ||||||||||||
| UWBSJ-150 | MC Nylon | B/B | 30 | 2,240 | ||||||||||
| UWBSDJ-150 | MC Nylon | SUS | 2,240 | |||||||||||
*Changed to oval-shaped screw holes.
