Medium Weight Swivel Bracket
J Type
J Type
SJ-250
SUIJ-250
Click the image to see the enlarged image.
Unit: mm
| Size | Model Number |
Wheel | Bearing | Load Capacity | Tire Width |
Shaft Diameter |
Overall Height |
Plate Size |
Mounting Hole Pitch |
Plate Hole |
Offset | Weight | ||
| (daN) | (kgf) | R | D | H1 | F1/F2 | P1/P2 | d | E | (g) | |||||
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||||
| 300 | +Steel Rim / Rubber Wheel | |||||||||||||

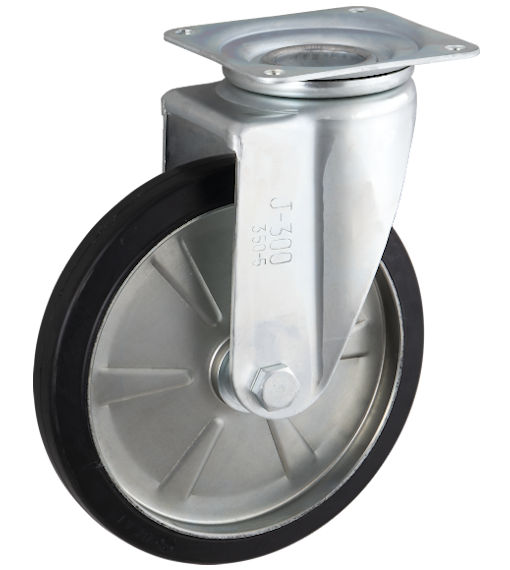

| SJ-300 | Rubber | B/B | 350 | 357.0 | 50 | 25 | 374 | 175/175 | 140/140 | 14 | 71 | 9,290 | ||
| +Steel Rim / Urethane Rubber Wheel | ||||||||||||||

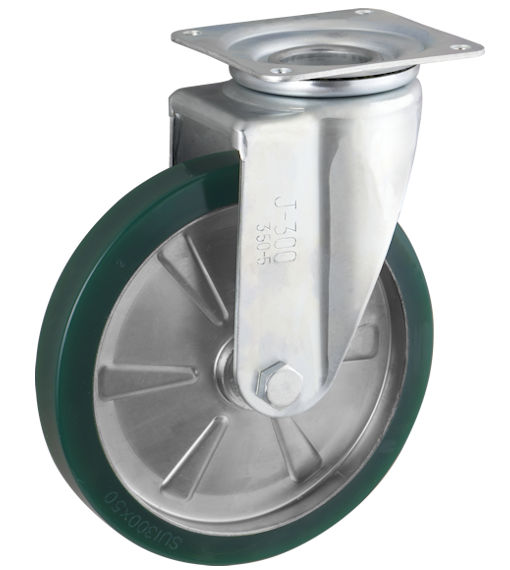

| SUIJ-300 | Urethane | B/B | 600 | 612.0 | 50 | 25 | 374 | 175/175 | 140/140 | 14 | 71 | 8,960 | ||
