Unit: mm

Size	Model Number		Wheel	Bearing	Load Capacity		Tire Width	Shaft Diameter	Overall Height	Plate Size	Mounting Hole Pitch	Plate Hole	Weight
					(daN)	(kgf)	R	D	H1	F1/F2	P1/ P2 (P2')	d	(g)
150	+Nylon
	PKA-150		Nylon		180	183.6	45	20	198	137/93	*100/ 56 (50)	11	1,370
	PBKA-150		Nylon	B/B	300	306.0							1,610
	PBDKA-150		Nylon	SUS									1,610
	+Nylon Rim / Rubber Wheel
	PNKA-150		Rubber	B/B	175	178.5	38	20	198	137/93	*100/ 56 (50)	11	1,630
	PNDKA-150		Rubber	SUS									1,630
	PNAKA-150		Rubber		140	142.8							1,470
	+Nylon Rim / Urethane Rubber Wheel
	PNUKA-150		Urethane	B/B	250	255.0	38	20	198	137/93	*100/ 56 (50)	11	1,590
	PNUDKA-150		Urethane	SUS									1,590

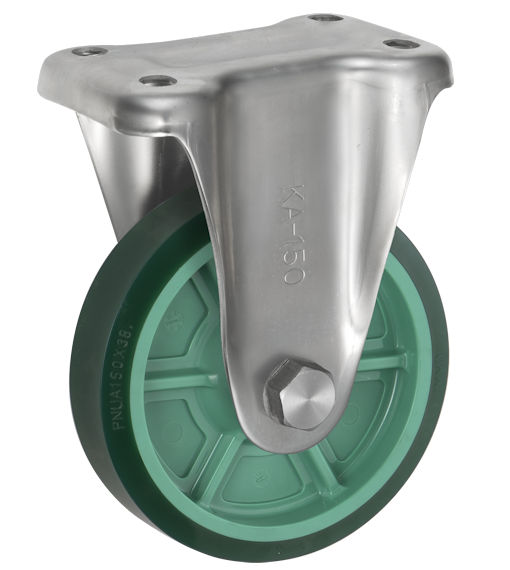

	PNUAKA-150		Urethane		150	153.0							1,400
	+Monomer Cast Nylon
	UWBKA-150		MC Nylon	B/B	350	357.0	40	20	198	137/93	*100/ 56 (50)	11	2,050
	UWBDKA-150		MC Nylon	SUS									2,050

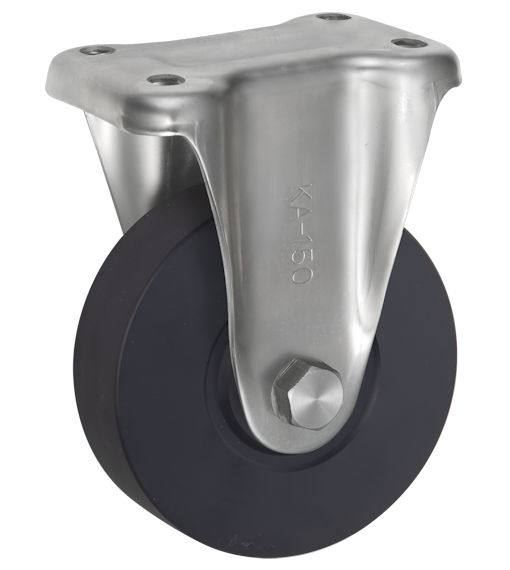

	UWAKA-150		MC Nylon										1,900
	UWBSKA-150		MC Nylon	B/B			30						1,650
	UWBSDKA-150		MC Nylon	SUS									1,650
	+Steel Rim / Rubber Wheel				Wheel rim is not stainless steel.
	SKA-150		Rubber	B/B	200	204.0	45	20	198	137/93	*100/ 56 (50)	11	1,920
	SRKA-150		Red Rubber	B/B	160	163.2							1,920
	CRKA-150		Heat-resistance	B/B	200	204.0							1,960
	+Steel Rim / Urethane Rubber Wheel				Wheel rim is not stainless steel.
	SUIKA-150		Urethane	B/B	300	306.0	38	20	198	137/93	*100/ 56 (50)	11	2,110
	SUIEKA-150		Anti-Static	B/B									2,110

*Oval-shaped screw holes

*The materials of JA Type bracket are all stainless steel (SUS304 / 18-8 stainless).
