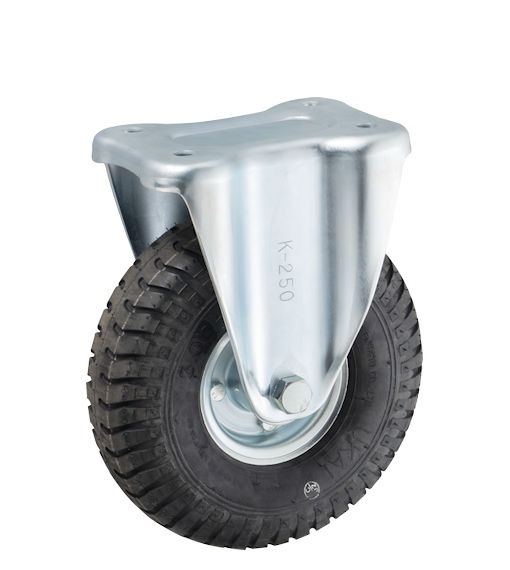

HLK3.00-4 FO
FO

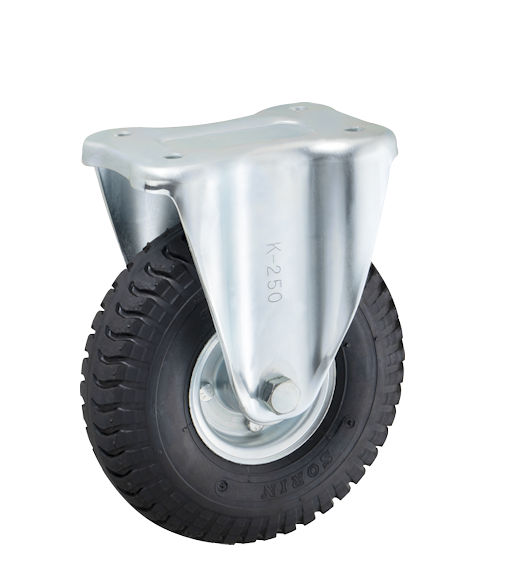

HLK3.00-4 AL
AL

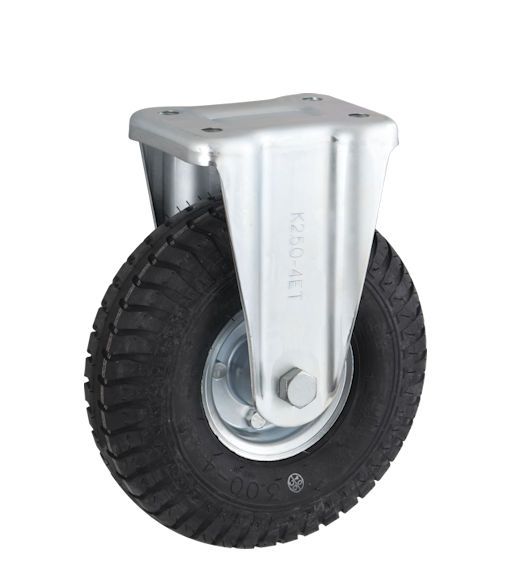

HLETK3.00-4 FO
FO
HLETK3.00-4 AL
AL
Click the image to see the enlarged image.
Unit: mm
Model
Number |
Wheel |
Bearing |
Load Capacity |
Tire |
Standard
Air
Pressure |
Shaft
Diameter |
Overall
Height |
Plate
Size |
Mounting
Hole Pitch |
Plate
Hole |
Weight |
| Diameter |
Width |
| (daN) |
(kgf) |
A |
R |
D |
H1 |
F1/F2 |
P1/P2 |
d |
(g) |
 |
 |
 |
(kgf/
cm2) |
 |
 |
 |
 |
 |
 |
|
HLK3.00-4
|
BS |
B/B |
110 |
112.2 |
253 |
82 |
3.5 |
20 |
306 |
200/140 |
140/80 |
14 |
4,620 |
| FO |
B/B |
254 |
76 |
307 |
4,620 |
| PU |
B/B |
110 |
112.2 |
242 |
76 |
－ |
301 |
5,260 |
| AL |
B/B |
130 |
132.6 |
248 |
73 |
－ |
304 |
6,640 |
|
HLETK3.00-4
|
BS |
B/B |
110 |
112.2 |
253 |
82 |
3.5 |
20 |
306 |
158/120 |
112/63 |
14 |
3,570 |
| FO |
B/B |
254 |
76 |
307 |
3,570 |
| PU |
B/B |
110 |
112.2 |
242 |
76 |
－ |
301 |
4,210 |
| AL |
B/B |
130 |
132.6 |
248 |
73 |
－ |
304 |
5,590 |
Bearing
B/B -- Steel bearing
Wheel
BS: Tire Made by Bridgestone
FO: Tire Made by Overseas Maker
PU -- PU Type Airless Tire (Foaming Urethane
AL -- Airless / Solid Tire
The outer diameter and width of a tire were measured at the standard air
pressure under the unloaded condition. They may vary according to usage
conditions.
