Unit: mm

Model Number

Wheel

Bearing

Load Capacity

Tire

Standard Air Pressure

Shaft Diameter

Overall Height

Plate Size

Mounting Hole Pitch

Plate Hole

Weight

Diameter

Width

(daN)

(kgf)

A

R

D

H1

F1/F2

P1/P2

d

(g)

(kgf/ cm2)

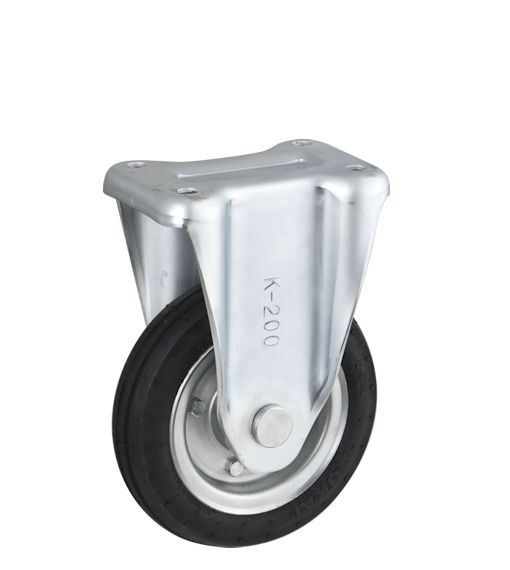

HLK61/2×2-4

BLACK

B/B

80

81.6

175

40

2.5

20

237

151/102

112/63

11

2,810

GRAY

2,810

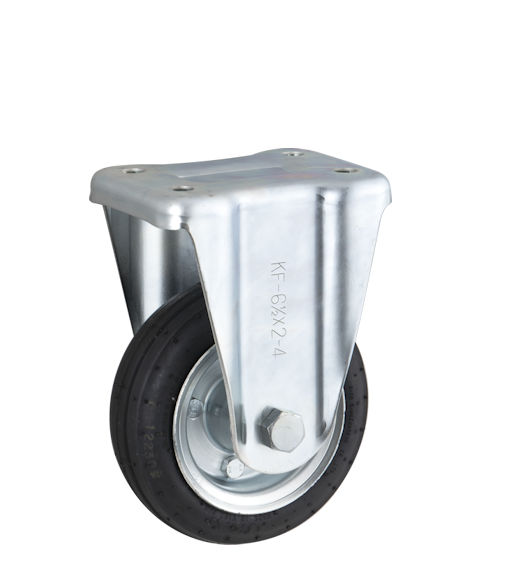

HFKF61/2×2-4

BLACK

B/B

80

81.6

169

50

2.5

20

234

158/120

112/63

14

2,910

GRAY

2,910

Bearing

B/B -- Steel bearing

Wheel

BLACK -- Tire Color : BLACK
GRAY -- Tire Color : GRAY

The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
