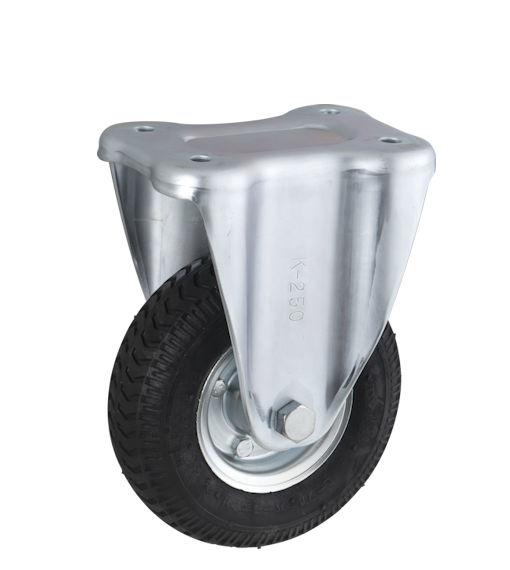

Rigid Bracket for Pnumatic Rubber WheelHLK / HFKF Type
Unit: mm
| Model Number |
Wheel | Bearing | Load Capacity | Tire | Standard Air Pressure |
Shaft Diameter |
Overall Height |
Plate Size |
Mounting Hole Pitch |
Plate Hole |
Weight | ||
| Diameter | Width | ||||||||||||
| (daN) | (kgf) | A | R | D | H1 | F1/F2 | P1/P2 | d | (g) | ||||
 |
 |
 |
(kgf/ cm2) |
 |
 |
 |
 |
 |
 |
||||
| HLK8x3.00-4 | FO | B/B入 | 85 | 86.7 | 218 | 67 | 3.5 | 20 | 289 | 200/140 | 140/80 | 14 | 4,190 |
| AL | B/B入 | 100 | 102.0 | 210 | 65 | － | 285 | 5,390 | |||||
The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
