Unit: mm

Size	Model Number		Wheel	Bearing	Load Capacity		Tire Width	Shaft Diameter	Overall Height	Plate Size	Mounting Hole Pitch	Plate Hole	Offset	Weight
					(daN)	(kgf)	R	D	H1	F1/F2	P1/P2	d	E	(g)
150	+Nylon
	PJA-150		Nylon		250	255.2	45	20	198	120/120	90/90	11	45	1,880
	PBJA-150		Nylon	B/B	300	306.0								2,120
	PBDJA-150		Nylon	SUS										2,120
	+Nylon Rim / Rubber Wheel
	PNJA-150		Rubber	B/B	175	178.5	38	20	198	120/120	90/90	11	45	2,140
	PNDJA-150		Rubber	SUS										2,140
	PNAJA-150		Rubber		140	142.8								1,980
	+Nylon Rim / Urethane Rubber Wheel

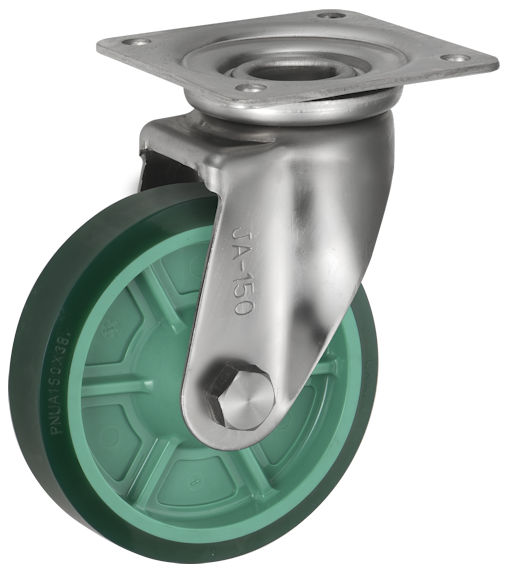

	PNUJA-150		Urethane	B/B	250	255.0	38	20	198	120/120	90/90	11	45	2,100
	PNUDJA-150		Urethane	SUS										2,100
	PNUAJA-150		Urethane		150	153.0								1,910
	+Monomer Cast Nylon

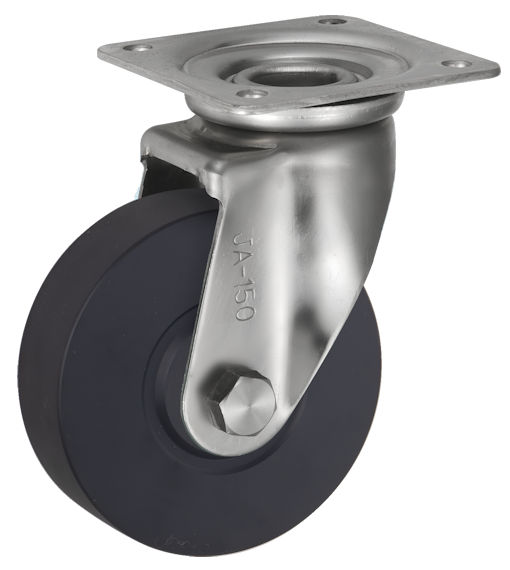

	UWBJA-150		MC Nylon	B/B	350	357.0	40	20	198	120/120	90/90	11	45	2,560
	UWBDJA-150		MC Nylon	SUS										2,560
	UWAJA-150		MC Nylon											2,410
	UWBSJA-150		MC Nylon	B/B			30							2,160
	UWBSDJA-150		MC Nylon	SUS										2,160
	+Steel Rim / Rubber Wheel				Wheel rim is not stainless steel.
	SJA-150		Rubber	B/B	200	204.0	45	20	198	120/120	90/90	11	45	2,430
	SRJA-150		Red Rubber	B/B	160	163.2								2,430
	CRJA-150		Heat-resistance	B/B	200	204.0								2,470
	+Steel Rim / Urethane Rubber Wheel				Wheel rim is not stainless steel.
	SUIJA-150		Urethane	B/B	300	306.0	38	20	198	120/120	90/90	11	45	2,620
	SUIEJA-150		Anti-Static	B/B										2,620

*The materials of JA Type bracket are all stainless steel (SUS304 / 18-8 stainless).
