Unit: mm

Size	Model Number		Wheel	Bearing	Load Capacity		Tire Width	Shaft Diamete	Overall Height	Plate Size	Mounting Hole Pitch	Plate Hole	Offset	Weight
					(daN)	(kgf)	R	D	H1	F1/F2	P1/P2	d	E	(g)
150	+Steel Rim / Rubber Wheel
	SJB-150		Rubber	B/B	200	204.0	45	20	198	120/120	* 95/95 (87/87)	11	45	2,700
	SRJB-150		Red Rubber	B/B	140	142.8								2,700
	CRJB-150		Heat-resistance	B/B	180	183.6								2,740
	+Steel Rim / Urethane Rubber Wheel
	SUIJB-150		Urethane	B/B	300	306.0	38	20	198	120/120	* 95/95 (87/87)	11	45	2,890
	SUIEJB-150		Anti-Static	B/B										2,890
	+Nylon Rim / Rubber Wheel

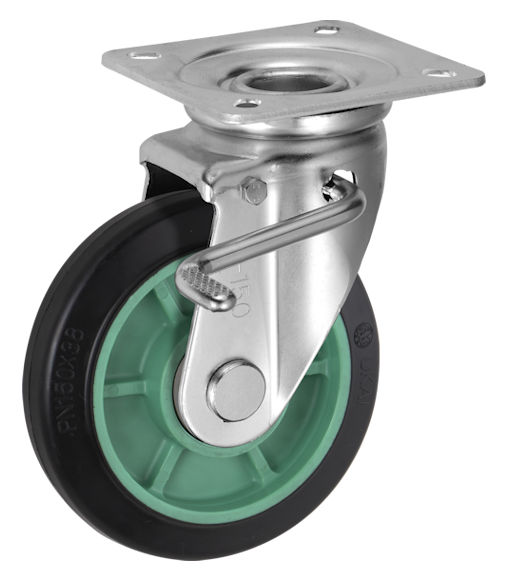

	PNJB-150		Rubber	B/B	175	178.5	38	20	198	120/120	* 95/95 (87/87)	11	45	2,410
	PNDJB-150		Rubber	SUS										2,410
	PNAJB-150		Rubber		140	142.8								2,250
	+Nylon Rim / Urethane Rubber Wheel

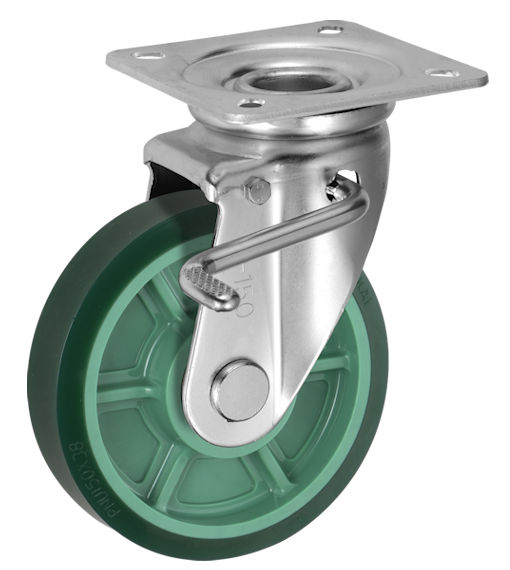

	PNUJB-150		Urethane	B/B	250	255.0	38	20	198	120/120	* 95/95 (87/87)	11	45	2,370
	PNUDJB-150		Urethane	SUS										2,370
	PNUAJB-150		Urethane		150	153.0								2,180
	+Nylon
	PJB-150		Nylon		180	183.6	45	20	198	120/120	* 95/95 (87/87)	11	45	2,150
	PBJB-150		Nylon	B/B	300	306.0								2,390
	PBDJB-150		Nylon	SUS										2,390
	+Monomer Cast Nylon
	UWBJB-150		MC Nylon	B/B	300	306.0	40	20	198	120/120	* 95/95 (87/87)	11	45	2,830
	UWBDJB-150		MC Nylon	SUS										2,830
	UWAJB-150		MC Nylon											2,680
	UWBSJB-150		MC Nylon	B/B			30							2,430
	UWBSDJB-150		MC Nylon	SUS										2,430

*Changed to oval-shaped screw holes.

*The stopper pedal for left foot is available (JB-150 -> JBL-150).
