Swivel Bracket for Pnumatic Rubber WheelHLJ/HLJY/HFJF Type
Bracket Dimensions / Drawing Download PDF file
Size 61/2x2-3 2.00-4 61/2x2-4
2.50-4 3.00-4 8x3.00-4 3.50-5

HLJ2.00-4

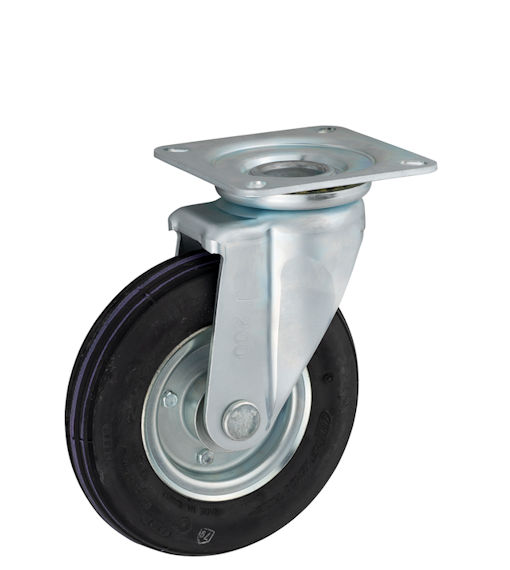

Photo of HLJ2.00-4


Click the image to see the enlarged image.

Unit: mm

Model
Number
Wheel Bearing Load Capacity Tire Standard
Air
Pressure
Shaft
Diameter
Overall
Height
Plate
Size
Mounting
Hole Pitch
Plate
Hole
Offset Weight
Diameter Width
(daN) (kgf) A R D H1 F1/F2 P1/P2 d E (g)
(kgf/
cm2)
HLJ2.00-4 BLACK B/B 80 81.6 210 50 2.5 20 260 140/140 *
115/115
(105/105)
11 58 3,490
GRAY B/B 3,490

*Changed to oval-shaped screw holes.

Bearing
B/B -- Steel bearing
Wheel
BLACK -- Tire Color: BLACK
GRAY -- Tire Color: GRAY

The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
