Swivel Bracket for Pnumatic Rubber WheelHLJ/HLJY/HFJF Type
HLJ3.50-5
Click the image to see the enlarged image.
Unit: mm
| Model Number |
Wheel | Bearing | Load Capacity | Tire | Standard Air Pressure |
Shaft Diameter |
Overall Height |
Plate Size |
Mounting Hole Pitch |
Plate Hole |
Offset | Weight | ||
| Diameter | Width | |||||||||||||
| (daN) | (kgf) | A | R | D | H1 | F1/F2 | P1/P2 | d | E | (g) | ||||
 |
 |
 |
(kgf/ cm2) |
 |
 |
 |
 |
 |
 |
 |
||||

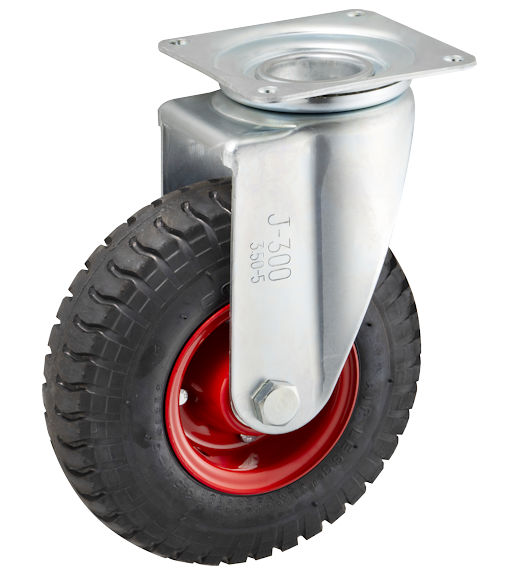

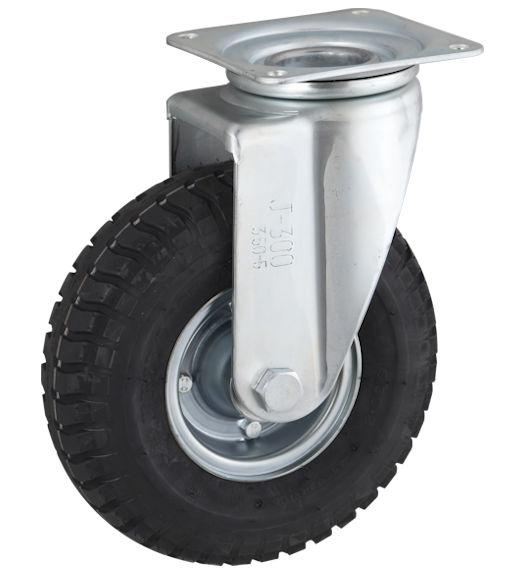

| HLJ3.50-5 | BS | B/B入 | 160 | 163.2 | 295 | 90 | 3.5 | 25 | 371 | 175/175 | 140/140 | 14 | 71 | 7,110 |

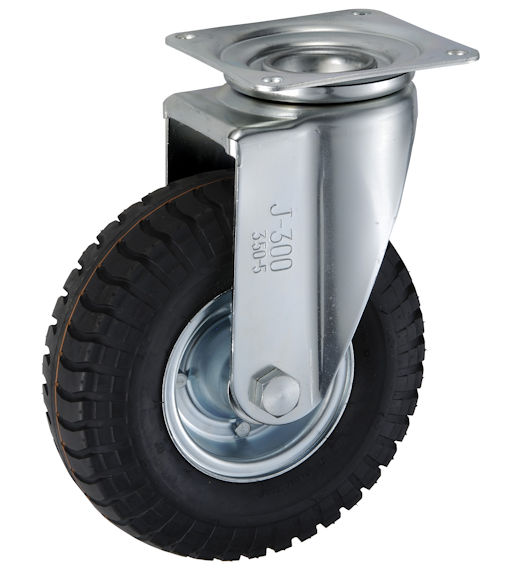

| FO | B/B入 | 286 | 90 | 367 | 7,110 | |||||||||
| AL | B/B入 | 200 | 204.0 | 286 | 90 | － | 367 | 10,440 | ||||||
The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
