Unit :mm

Model Number	Wheel	Bearings	Load Capacity		Tire		Standard Air Pressure	Shaft Diameter	Overall Height	Plate Size	Mounting Hole Pitch	Plate Hole	Offset	Weight
					Diameter	Width
			(daN)	(kgf)	A	R		D	H1	F1/F2	P1/P2	d	E	(g)
							(kgf/ cm2)

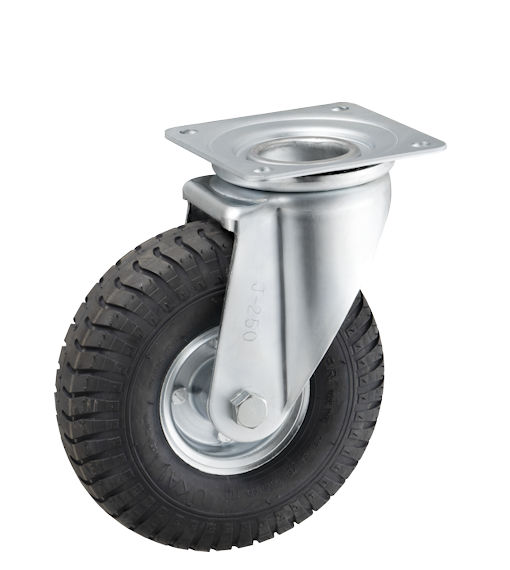

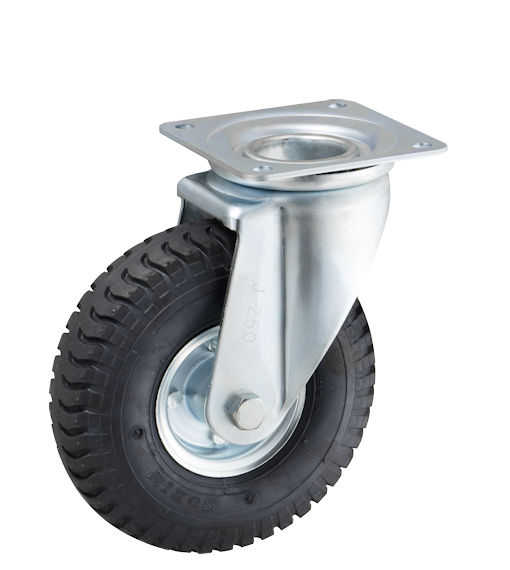

HLJ3.00-4	BS	B/B	110	112.2	253	82	3.5	20	306	160/160	125/125	14	71	5,190
	FO	B/B			254	77			307					5,190
	PU	B/B	110	112.2	242	76	－		301					5,830
	AL	B/B	130	132.6	248	73	－		304					7,210

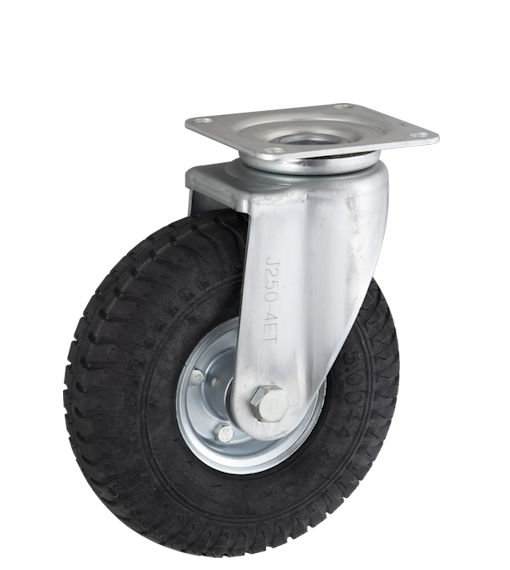

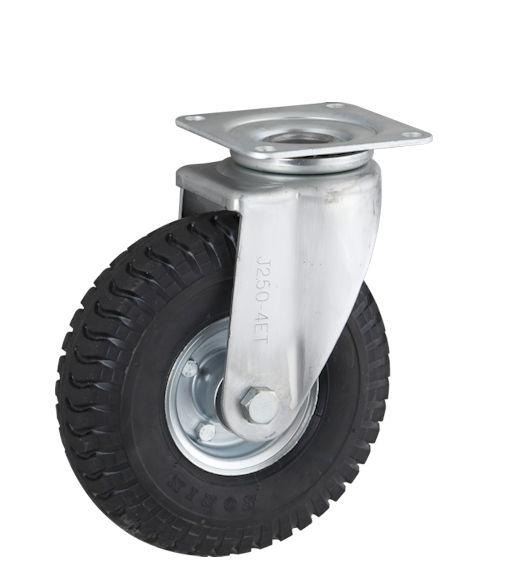

HLETJ3.00-4	BS	B/B	110	112.2	253	82	3.5	20	306	140/140	112/112	14	58	4,790
	FO	B/B			254	76			307					4,790
	PU	B/B	110	111.2	242	76	－		301					5,430
	AL	B/B	130	132.6	248	73	－		304					6,810

Bearing

B/B -- Steel bearing

Wheel

BS: Tire Made by Bridgestone
FO: Tire Made by Overseas Maker
PU -- PU Type Airless Tire (Foaming Urethane
AL -- Airless / Solid Tire

The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
