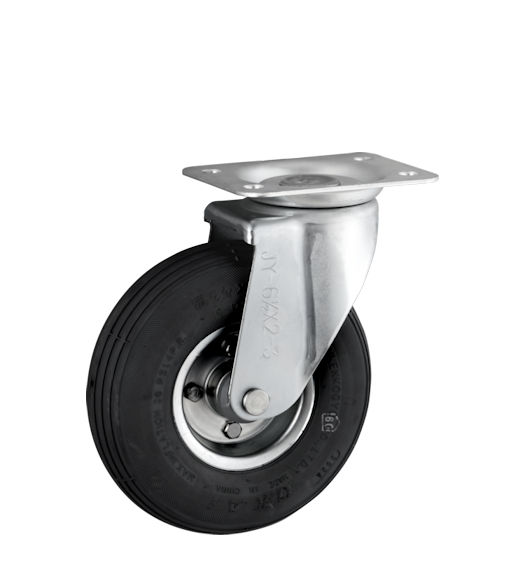

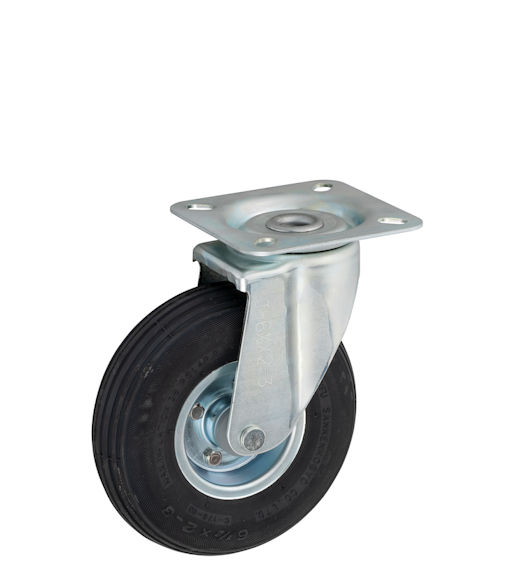

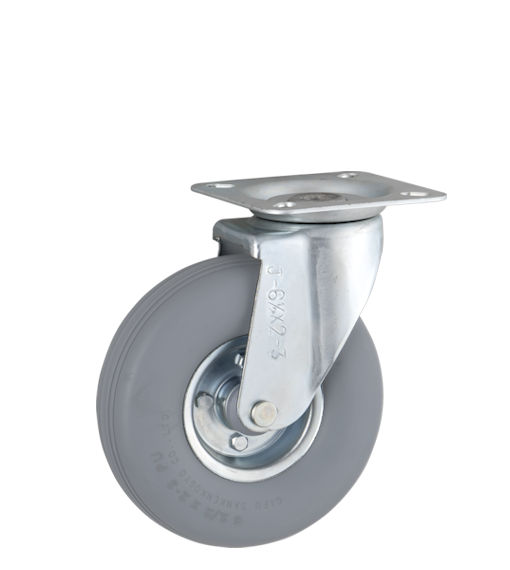

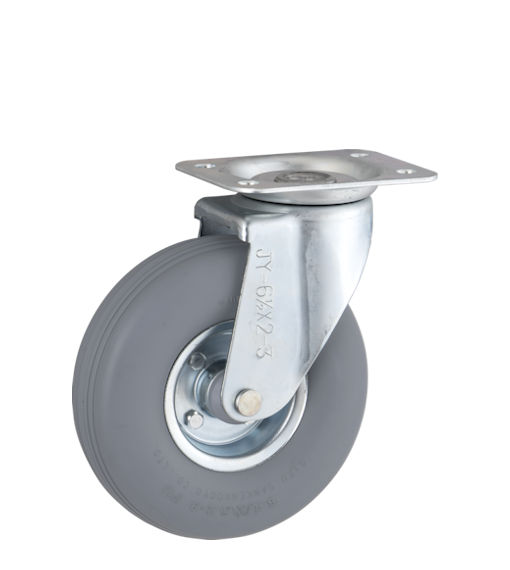

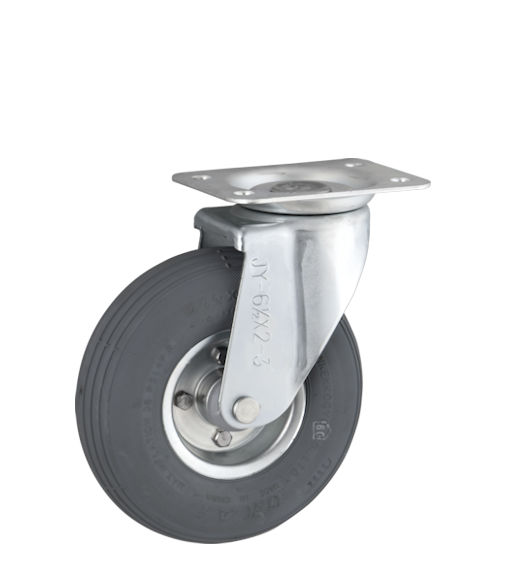

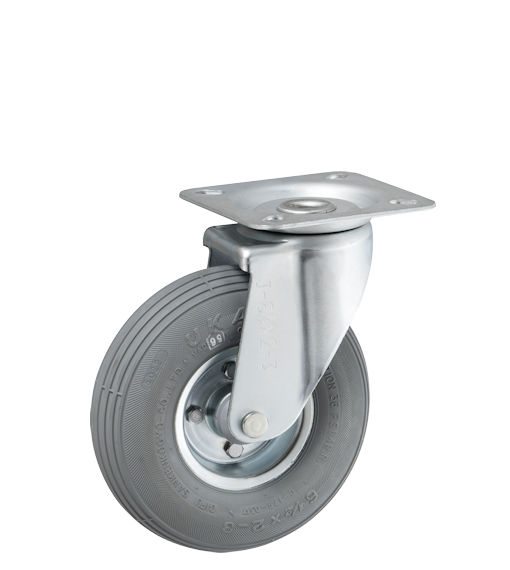

Swivel Bracket for Pnumatic Rubber WheelHLJ/HLJY/HFJF Type
HLJ61/2x2-3
Click the image to see the enlarged image.
Unit: mm
| Model Number |
Wheel | Bearing | Load Capacity | Tire | Standard Air Pressure |
Shaft Diameter |
Overall Height |
Plate Size |
Mounting Hole Pitch |
Plate Hole |
Offset | Weight | ||
| Diameter | Width | |||||||||||||
| (daN) | (kgf) | A | R | D | H1 | F1/F2 | P1/P2 (P1'/P2') |
d | E | (g) | ||||
 |
 |
 |
(kgf/ cm2) |
 |
 |
 |
 |
 |
 |
 |
||||
| HLJ61/2x2-3 | BLACK | B/B | 60 | 61.2 | 175 | 53 | 2.5 | 12 | 210 | 120/120 | 90/90 (80/80) * |
11 | 45 | 1,500 |
| GRAY | B/B | 1,500 | ||||||||||||
| PU | B/B | - | 1,640 | |||||||||||
| HLJY61/2x2-3 | BLACK | B/B | 60 | 61.2 | 175 | 53 | 2.5 | 12 | 210 | 128/ 98 | 100/ 56 | 11 | 45 | 1,490 |
| GRAY | B/B | 1,490 | ||||||||||||
| PU | B/B | - | 1,640 | |||||||||||
*Oval-shaped screw holes
The outer diameter and width of a tire were measured at the standard air pressure under the unloaded condition. They may vary according to usage conditions.
